Nevalux IR Micro DALI-2 Input Device

Nevalux IR Micro DALI-2 Input Device

ELDAS® no. 535 932 200 · EAN-No. 4007841 057732

Technical data Illustrations Wiring diagrams Downloads
Nevalux

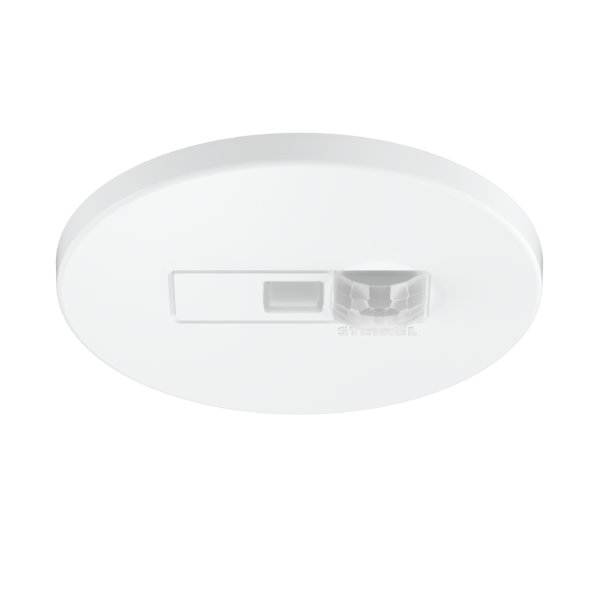

Nevalux IR Micro DALI-2 Input Device

ELDAS® no. 535 932 200

EAN-No. 4007841 057732

Price: Please log in to see prices

Small. Round. Slim. Compact, inconspicuous single workstation solution. IR Micro 360° passive infrared sensor with a presence detection zone of 4 x 4 m (presence and radial) or 6 x 6 m (tangential). DALI-2 Input Device enables sensors to communicate collected sensor data to higher-level lighting management systems (e.g. LiveLink).

  • Small. Round. Slim. Compact, inconspicuous single workstation solution. IR Micro 360° passive infrared sensor with a presence detection zone of 4 x 4 m (presence and radial) or 6 x 6 m (tangential). DALI-2 Input Device enables sensors to communicate collected sensor data to higher-level lighting management systems (e.g. LiveLink).

Identification

Version Presence detector

Dimensions

Dimensions Ø × H 80 x 21 mm

Electrical

Mains connection 12 – 22,5 V
Supply voltage detail DALI bus
Switching output 1 potential-free No
Control output DALI Addressable/slave

Sensor technology

Max. mounting height 5,00 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 360 °
Opening angle 160 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability No
Mechanical scalability No
Radial range 4 x 4 m (16 m²)
Tangential range 6 x 6 m (36 m²)
Switching zones 168 switching zones
Mounting height 2,00 – 5,00 m
Presence range 4 x 4 m (16 m²)
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Type of networking Master/slave
Networking via DALI bus
Number of DALI participants 2
With bus coupler Yes

Lighting technology

Soft light start No
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 2 – 1000 lx
Base light function No
Main light adjustable No
Settings via Bus
With remote control No
Twilight setting teach No

Housing & material

Protection class (IP) IP20
Ambient temperature from 0 up to 40 °C
Mounting location ceiling
Application location Indoors
Mounting type Concealed wiring
Material Plastic
Application room Indoors WC / washroom care room function room / ancillary room hotel room one-person office
Colour white
RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

Technical drawing

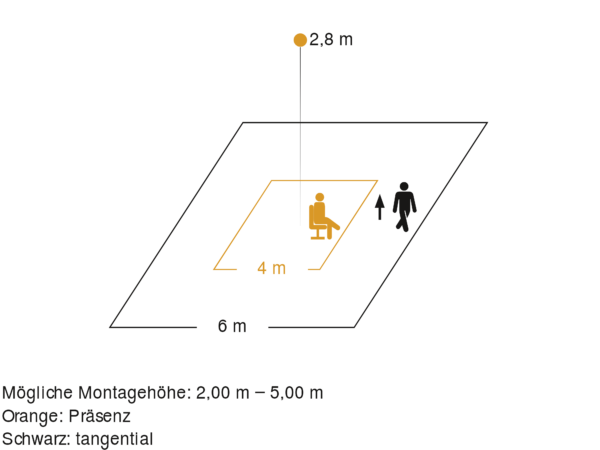

Sensor detection range

Wiring diagram 1

Circuit diagram
