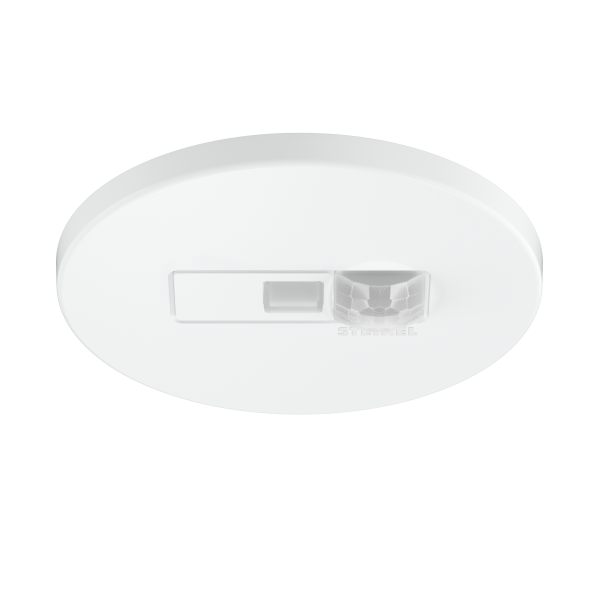

| Type | Presence detector |
| Dimensions (Ø x H) | 80 x 21 mm |
| Mains power supply | 16 V |
| Power supply, detail | DALI bus |
| Number of DALI users | 2 |
| Sensor Technology | passive infrared |
| Application, place | Indoors |
| Application, place, room | One-person office, side room, washroom, wc |
| Installation site | ceiling |
| Type of installation | Concealed wiring |
| Switching zones | 168 switching zones |
| Electronic scalability | No |
| Mechanical scalability | No |
| Mounting height | 2,00 – 4,00 m |
| Optimum mounting height | 2,8 m |
| Detection angle | 360 ° |
| Angle of aperture | 160 ° |
| Sneak-by guard | Yes |
| Reach, radial | 4 x 4 m (16 m²) |
| Reach, tangential | 6 x 6 m (36 m²) |
| Reach, presence | 4 x 4 m (16 m²) |
| Twilight setting TEACH | Yes |
| Twilight setting | 2 – 2000 lx |
| Time setting | 60 sec – 60 min |
| Control output, DALI | Addressable/slave |
| LiveLink values | Light level, Motion detection |
| Settings via | LiveLink app |
| With remote control | No |
| Interconnection | Yes |
| IP rating | IP20 |
| Material | Plastic |
| Ambient temperature | 0 – 40 °C |
| Colour | white |
| Colour, RAL | 9010 |
| Manufacturer's Warranty | 5 years |
| Version | LiveLink |
| Model | LiveLink |
