| Surface | Motion detectors |
| Mains power supply | 12 – 22,5 V |
| Power supply, detail | DALI bus |
| Number of Dali users | 5 |
| With bus coupling | Yes |
| Settings via | Bus |
| With remote control | No |

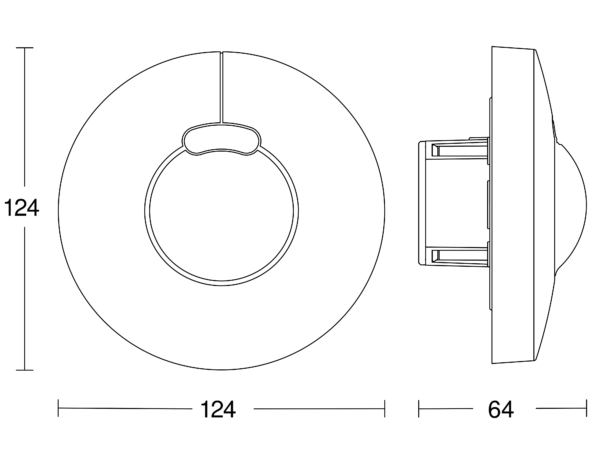

| Dimensions (Ø x H) | 124 x 95 mm |
| Sensor Technology | High frequency |
| Transmitter power | < 1 mW |
| HF-system | 5,8 GHz |
| Interconnection | Yes |
| Type of interconnection | Master/slave |
| Interconnection via | DALI bus |
| Application, place | Indoors |
| Application, room | function room / ancillary room stairwell WC / washroom multi-storey / underground car park Indoors |
| Installation site | wall ceiling corner |
| Type of installation | Concealed wiring |

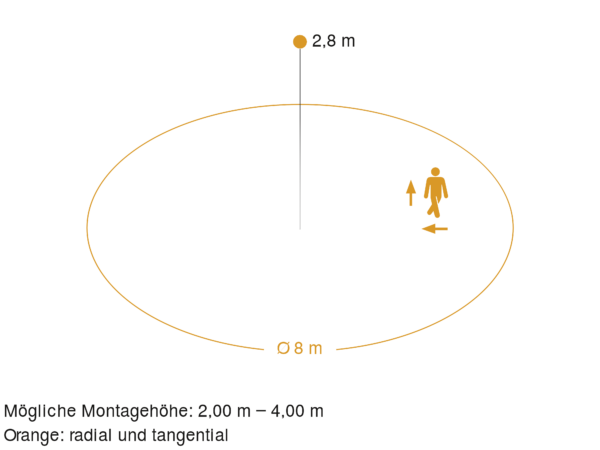

| Mounting height | 2,00 – 4,00 m |
| Optimum mounting height | 2,8 m |
| Mounting height max. | 4,00 m |
| Power consumption | 0,5 W |
| With motion detector | Yes |
| Capture | also through glass, wood and stud walls |
| Detection angle | 360 ° |
| Angle of aperture | 180 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | No |
| Electronic scalability | Yes |
| Mechanical scalability | No |
| Radial reach | Ø 8 m (50 m²) |
| Tangential reach radius | Ø 8 m (50 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 1000 lx |
| Twilight setting TEACH | No |
| Main light adjustable | No |
| Basic light level function | No |
| Soft light start | No |
| Constant-lighting control | No |
| Control output, Dali | Addressable/slave |
| IP rating | IP20 |
| Ambient temperature | from -20 up to 50 °C |
| Material | Plastic |
| Colour | white |
| Colour, RAL | 9003 |
| Manufacturer's Warranty | 5 years |
| IDs, certificates | DALI-2 |
| Includes corner wall mount | No |
