| Surface | Presence detector |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Settings via | Remote control Potentiometers Smart Remote |
| With remote control | No |

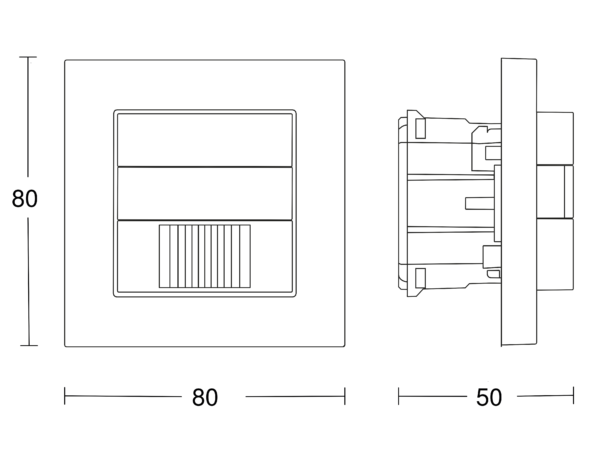

| Dimensions (L x W x H) | 50 x 80 x 80 mm |
| Sensor Technology | passive infrared |
| Interconnection | No |
| Application, place | Indoors |
| Application, room | one-person office corridor / aisle function room / ancillary room kitchenette stairwell WC / washroom Indoors |
| Installation site | wall |
| Type of installation | Concealed wiring |
| Mounting height | 1,10 – 1,20 m |
| Optimum mounting height | 1,2 m |
| Mounting height max. | 1,20 m |
| Detection angle | 180 ° |
| Angle of aperture | 90 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | No |
| Electronic scalability | Yes |
| Mechanical scalability | No |

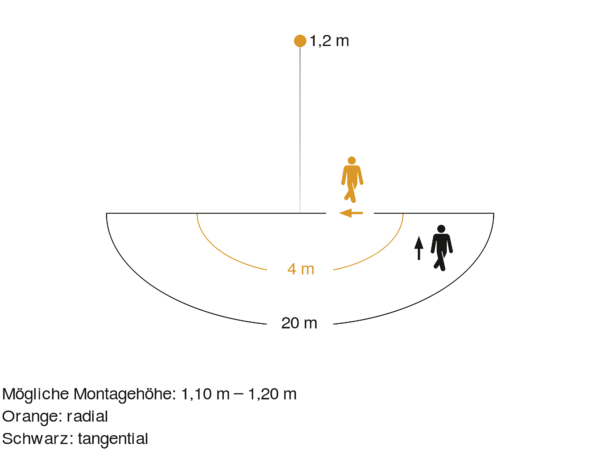

| Radial reach | r = 4 m (25 m²) |
| Tangential reach radius | r = 20 m (628 m²) |
| Presence reach | r = 4 m (25 m²) |
| Switching zones | 96 switching zones |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 1000 lx |
| Twilight setting TEACH | Yes |
| Time setting | 30 s – 15 Min. |
| Main light adjustable | No |
| Basic light level function | No |
| Functions | Switch active / switch inactive Normal / test mode Manual ON / ON-OFF |
| Soft light start | No |
| Continuous light | selectable |
| Constant-lighting control | No |
| Switching output 1, resistive | 200 W |
| Capacitive load in uF | 132 µF |
| Switching output 1, number of LEDs / fluorescent lamps | 6 pcs. |
| IP rating | IP20 |
| Ambient temperature | 0 – 40 °C |
| Material | Plastic |
| Colour | white |
| Colour, RAL | 9010 |
| Manufacturer's Warranty | 5 years |
| IDs, certificates | KEMA |
| Includes corner wall mount | No |
