IR Quattro HD 24m DALI plus Surface wiring

Name: IR Quattro HD 24m DALI plus Surface wiring
SKU: 4007841035273

EAN: 4007841 035273

E-No: 535933606

The gateway to intelligent lighting control. Intelligent infrared presence detector IR Quattro HD DALI plus with a wide range of additional functions, ideal for classrooms, open-plan offices and multi-storey car parks, mounting height up to 10 m, with three lighting channels (DALI addressable) for up to 64 luminaires, easily set up via app. Additional floating relay, constant-lighting control and variable light-level functions, button interface for all 3 lighting channels for controlling and dimming the floating relay (lighting mode), remotely controllable via Smart Remote.

4 pyros with DSP (Digital Signal Processing)
Smart Remote remote control optional
Optional guard cage

Surface	Presence detector
Mains power supply	220 – 240 V / 50 – 60 Hz
Settings via	Remote control Smart Remote
With remote control	No

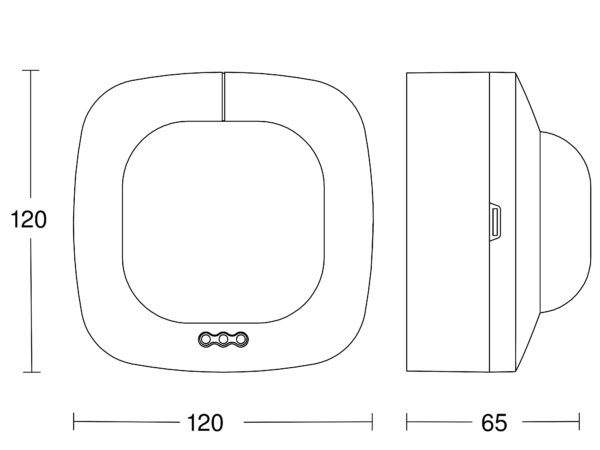

Dimensions (L x W x H)	65 x 120 x 120 mm
Sensor Technology	passive infrared
Interconnection	Yes
Type of interconnection	Master/master Master/slave
Interconnection via	Cable DALI bus
Application, place	Indoors
Application, room	classroom lecture hall open-plan office high-bay warehouse production facilities conference room / meeting room duty room recreation room changing room sports hall reception / lobby multi-storey / underground car park Indoors
Installation site	ceiling
Type of installation	Surface wiring
Mounting height	2,50 – 10,00 m
Optimum mounting height	2,8 m
Mounting height max.	10,00 m
Power consumption	0,5 W
With motion detector	Yes
Detection angle	360 °
Angle of aperture	160 °
Sneak-by guard	Yes
Capability of masking out individual segments	No
Electronic scalability	No
Mechanical scalability	Yes

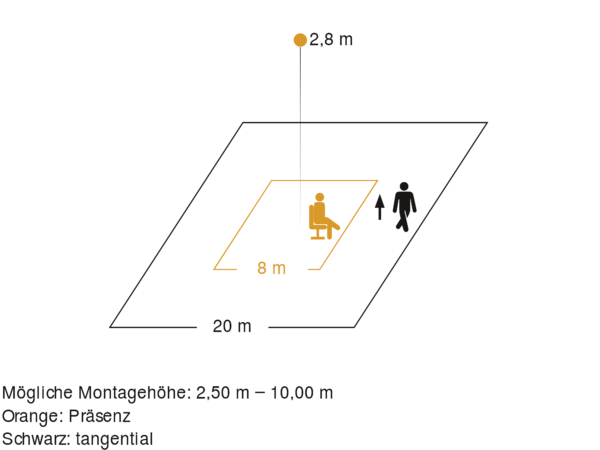

Radial reach	8 x 8 m (64 m²)
Tangential reach radius	20 x 20 m (400 m²)
Presence reach	8 x 8 m (64 m²)
Switching zones	4800 switching zones
Photo-cell controller	Yes
Twilight setting	10 – 1000 lx
Twilight setting TEACH	Yes
Time setting	5 s – 60 Min.
Main light adjustable	50 - 100 %
Basic light level function	Yes
Basic light level function time	1-60 min, all night
Basic light level function in per cent	10 – 50 %
Basic light level function percentage, from	10 %
Functions	4 inputs for conventional switches Semi-/fully automatic Constant-lighting control ON-OFF Master/slave override Neighbouring group function Normal / test mode TouchDIM function
Soft light start	Yes
Continuous light	selectable
Constant-lighting control	Yes
Control output, Dali	Addressable / broadcast 64 electronic ballasts
IP rating	IP20
Ambient temperature	from 0 up to 40 °C
Material	Plastic
Colour	white
Colour, RAL	9010
Manufacturer's Warranty	5 years
IDs, certificates	VDE DALI-2
Includes corner wall mount	No
