| Surface | Presence detector |
| Mains power supply | 16 V |
| Power supply, detail | DALI bus |
| Number of Dali users | 2 |
| Settings via | Bus |
| With remote control | No |

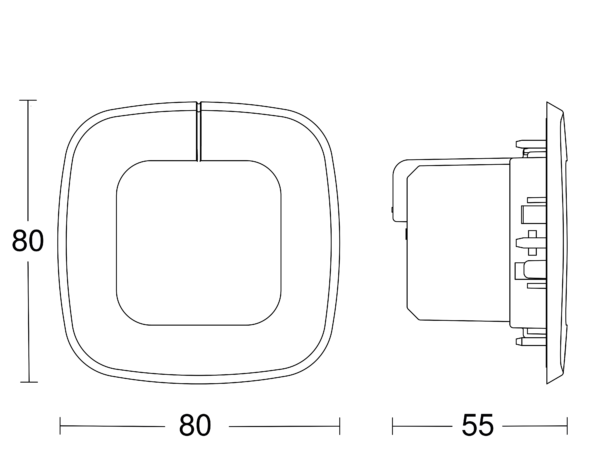

| Dimensions (L x W x H) | 50 x 80 x 80 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Type of interconnection | Master/slave |
| Interconnection via | DALI bus |
| Application, place | Indoors |
| Application, room | one-person office hotel room care room function room / ancillary room WC / washroom Indoors |
| Installation site | ceiling |
| Type of installation | Concealed wiring |

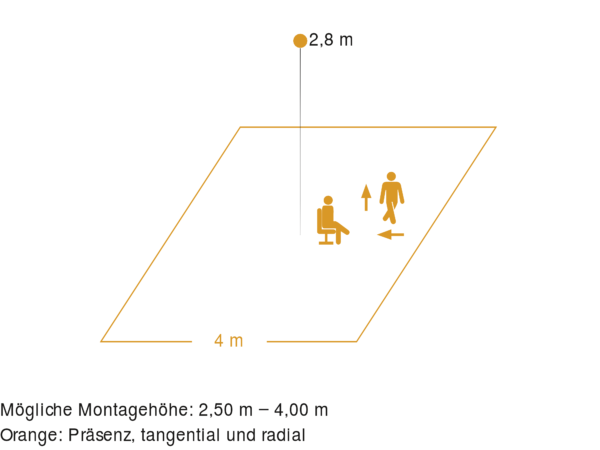

| Mounting height | 2,50 – 4,00 m |
| Optimum mounting height | 2,8 m |
| Mounting height max. | 4,00 m |
| With motion detector | Yes |
| Detection angle | 360 ° |
| Angle of aperture | 71 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | No |
| Electronic scalability | No |
| Mechanical scalability | No |
| Reach, detail | Retina lens and hexagonal Fresnel structure |
| Radial reach | 4 x 4 m (16 m²) |
| Tangential reach radius | 4 x 4 m (16 m²) |
| Presence reach | 4 x 4 m (16 m²) |
| Switching zones | 408 switching zones |
| Photo-cell controller | Yes |
| Twilight setting | 10 – 1000 lx |
| Twilight setting TEACH | Yes |
| Time setting | 30 s – 30 Min. |
| Main light adjustable | No |
| Basic light level function | No |
| Soft light start | No |
| Constant-lighting control | Yes |
| Switching output 2, floating | No |
| Control output, Dali | Addressable/slave |
| IP rating | IP20 |
| Ambient temperature | from 0 up to 40 °C |
| Material | Plastic |
| Colour | white |
| Colour, RAL | 9010 |
| Manufacturer's Warranty | 5 years |
| IDs, certificates | DALI-2 |
| Includes corner wall mount | No |
