| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| With remote control | No |

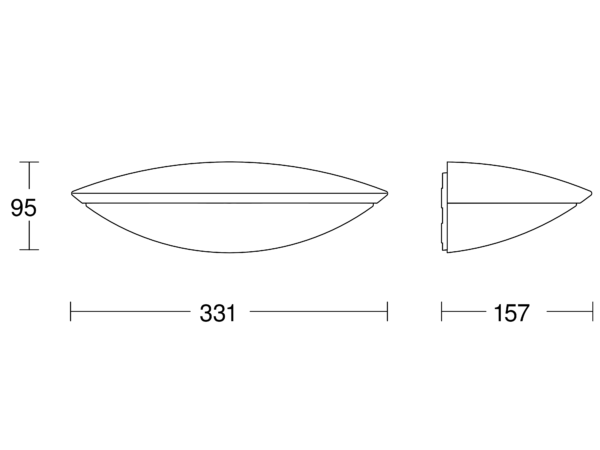

| Dimensions (L x W x H) | 157 x 331 x 95 mm |
| Sensor Technology | iHF (intelligent high-frequency technology) |
| Transmitter power | < 1 mW |
| Interconnection | Yes |
| Type of interconnection | Master/master |
| Transmitter range | 30 m |
| Interconnection via | Bluetooth Mesh Connect |
| Slave modeselectable | No |
| Application, place | Outdoors |
| Application, room | outdoors front door all round the building terrace / balcony courtyard & driveway |
| Installation site | wall |
| Type of installation | Surface wiring |
| Mounting height | 1,80 – 2,50 m |
| Optimum mounting height | 2 m |
| Mounting height max. | 2,50 m |
| Output | 9,7 W |

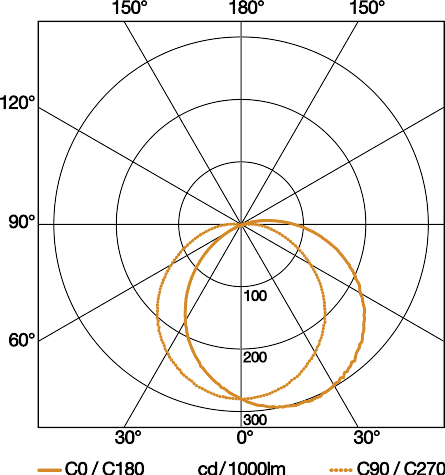

| Measured luminous flux (360°) | 707 lm |
| Colour temperature | 3000 K |
| With lamp | Yes, STEINEL LED system |
| Lamp | LED cannot be replaced |
| Lifetime LED L70B50 (25°) | > 60000 h |
| Base | without |
| LED cooling system | Active and Passive Thermo Control |
| With motion detector | Yes |
| Detection angle | 160 ° |
| Sneak-by guard | No |
| Capability of masking out individual segments | No |
| Electronic scalability | Yes |
| Mechanical scalability | No |

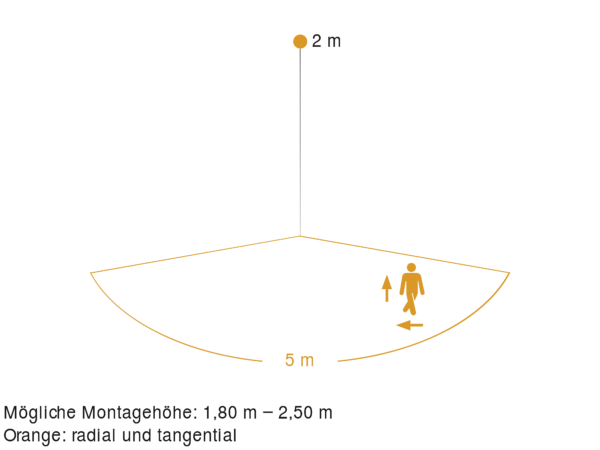

| Reach, detail | Detection zone adjustable on 2 axes |
| Radial reach | r = 5 m (35 m²) |
| Tangential reach radius | r = 5 m (35 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 2000 lx |
| Main light adjustable | 50 - 100 % |
| Basic light level function | Yes |
| Basic light level function time | 10-30 min, all night |
| Basic light level function in per cent | 10 – 50 % |
| Basic light level function percentage, from | 10 % |
| Output | 9,7 W |
| Functions | Group parameterisation Manual ON / ON-OFF |
| Soft light start | Yes |
| Continuous light | selectable, 4h |
| Impact resistance | IK03 |
| IP rating | IP44 |
| Protection class | II |
| Ambient temperature | from -20 up to 40 °C |
| Housing material | Aluminium |
| Cover material | Plastic, opal |
| Colour | Anthracite |
| Manufacturer's Warranty | 5 years |
| includes sheet of self-adhesive numbers | No |
| EPREL Category | Surrounded product with integrated light source |
