| Mains power supply | 220 – 240 V / 50 – 60 Hz |

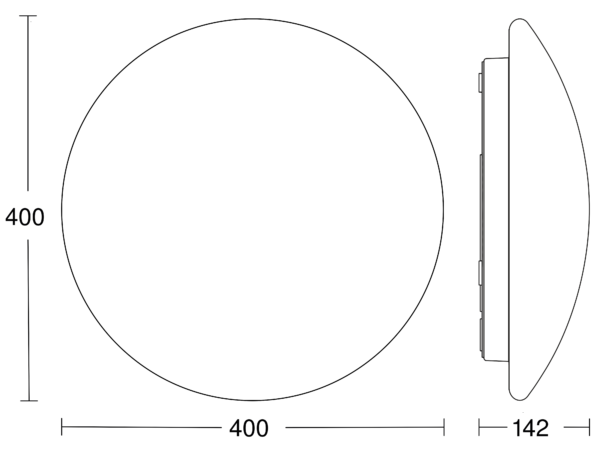

| Dimensions (Ø x H) | 400 x 142 mm |
| Sensor Technology | High frequency |
| Interconnection | Yes |
| Interconnection via | Cable |
| Installation site | wall ceiling |
| Mounting height | 2 – 4 m |
| Optimum mounting height | 2,8 m |
| Mounting height max. | 4,00 m |
| Output | 18,4 W |

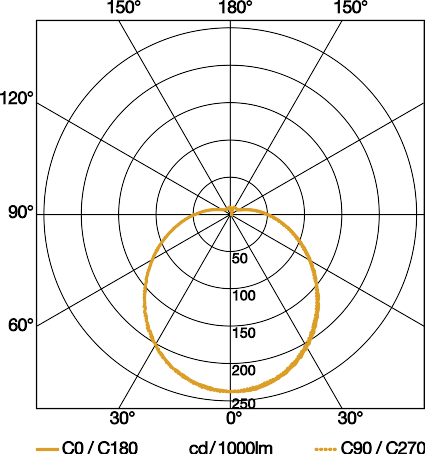

| Measured luminous flux (360°) | 2188 lm |
| Colour temperature | 4000 K |
| With lamp | Yes, STEINEL LED system |
| Lamp | LED cannot be replaced |
| LED life expectancy (max. °C) | 50000 h |
| Lifetime LED L70B50 (25°) | > 60000 h |
| Drop in luminous flux in accordance with LM80 | L80B10 |
| Base | without |
| LED cooling system | Passive Thermo Control |
| With motion detector | Yes |
| Detection angle | 360 ° |
| Electronic scalability | Yes |
| Mechanical scalability | No |

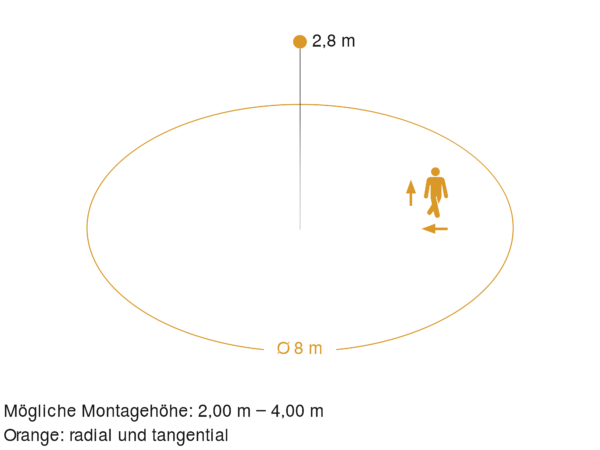

| Radial reach | Ø 8 m (50 m²) |
| Tangential reach radius | Ø 8 m (50 m²) |
| Twilight setting | 2 – 2000 lx |
| Time setting | 5 s – 15 Min. |
| Main light adjustable | No |
| Basic light level function | Yes |
| Basic light level function time | 10/30 min, all night |
| Basic light level function in per cent | 10 % |
| Basic light level function percentage, from | 10 % |
| Output | 18,4 W |
| Soft light start | Yes |
| Switching output 1, low-voltage halogen lamps | 800 VA |
| LED lamps > 8 W | 250 W |
| Capacitive load in uF | 88 µF |
| Switching output 1, number of LEDs / fluorescent lamps | 50 pcs. |
| Impact resistance | IK03 |
| IP rating | IP54 |
| Protection class | II |
| Ambient temperature | -10 – 40 °C |
| Housing material | Plastic |
| Cover material | Plastic, opal |
| Colour | white |
| Manufacturer's Warranty | 5 years |
| IDs, certificates | DEKRA |
| EPREL Category | Surrounded product with integrated light source |
