| Surface | Presence detector |
| Mains power supply | 16 V |
| Power supply, detail | DALI bus |
| Number of Dali users | 10 |
| Settings via | Bus |
| With remote control | No |
| Dimensions (L x W x H) | 71 x 120 x 120 mm |
| Sensor Technology | Ultrasonic |
| Ultrasonic technology | 40 kHz |
| Interconnection | Yes |
| Type of interconnection | Master/slave |
| Interconnection via | DALI bus |
| Application, place | Indoors |
| Application, room | corridor / aisle stairwell Indoors |
| Installation site | ceiling |
| Type of installation | Concealed wiring |

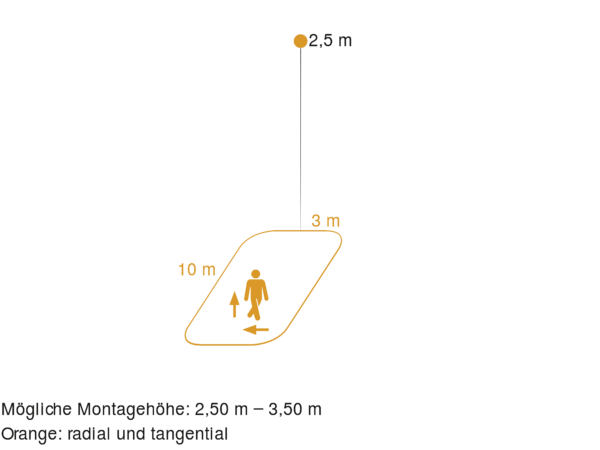

| Mounting height | 2,50 – 3,50 m |
| Optimum mounting height | 2,5 m |
| Mounting height max. | 3,50 m |
| Detection angle | 180 ° |
| Angle of aperture | 180 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | No |
| Electronic scalability | Yes |
| Mechanical scalability | No |
| Radial reach | 10 x 3 m (30 m²) |
| Tangential reach radius | 10 x 3 m (30 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 10 – 1000 lx |
| Twilight setting TEACH | No |
| Main light adjustable | No |
| Basic light level function | No |
| Soft light start | No |
| Constant-lighting control | No |
| Control output, Dali | Addressable/slave |
| Ambient temperature | -25 – +55 °C |
| Material | Plastic |
| Colour | white |
| Colour, RAL | 9010 |
| Manufacturer's Warranty | 5 years |
| IDs, certificates | DALI-2 |
| Includes corner wall mount | No |
