| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Settings via | Bluetooth |

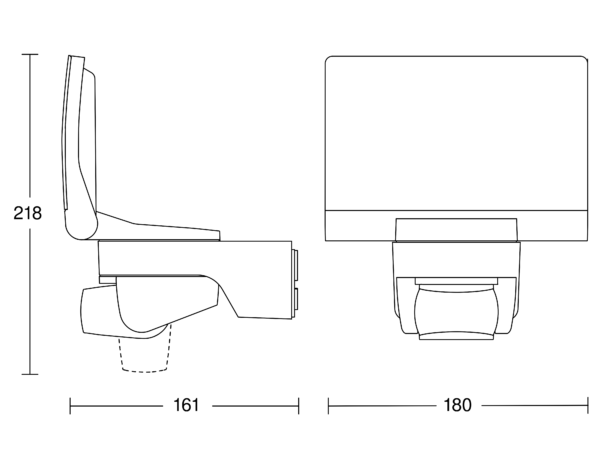

| Dimensions (L x W x H) | 161 x 180 x 218 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Type of interconnection | Master/master Master/slave |
| Interconnection via | Bluetooth |
| Application, place | Outdoors |
| Application, room | outdoors all round the building terrace / balcony courtyard & driveway |
| Installation site | wall corner |
| Type of installation | Surface wiring |
| Mounting height | 1,8 – 4 m |
| Optimum mounting height | 2 m |
| Mounting height max. | 4,00 m |
| Output | 13,8 W |

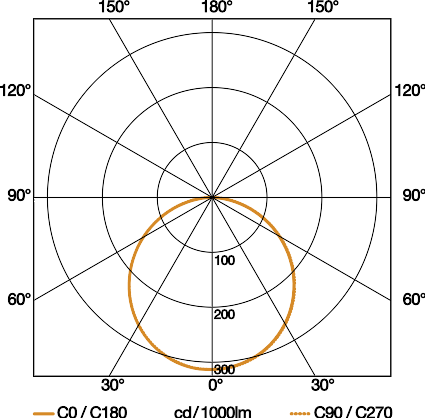

| Measured luminous flux (360°) | 1550 lm |
| Colour temperature | 3000 K |
| Colour variation LED | SDCM3 |
| Colour Rendering Index | 80-89 |
| With lamp | Yes, STEINEL LED system |
| Lamp | LED cannot be replaced |
| Base | without |
| LED cooling system | HCMC (High Conductive Magnesium Composite) |
| With motion detector | Yes |
| Detection angle | 180 ° |
| Angle of aperture | 90 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |

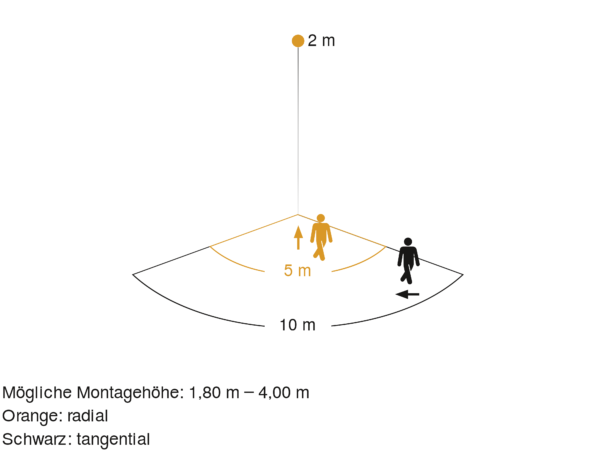

| Radial reach | r = 5 m (39 m²) |
| Tangential reach radius | r = 10 m (157 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 2000 lx |
| Twilight setting TEACH | Yes |
| Time setting | 5 s – 60 Min. |
| Basic light level function | No |
| Output | 13,8 W |
| Functions | Group parameterisation Manual ON / ON-OFF Neighbouring group function Master/slave override Night economy mode Timer |
| Soft light start | No |
| Continuous light | selectable |
| Impact resistance | IK03 |
| IP rating | IP44 |
| Protection class | II |
| Ambient temperature | from -20 up to 40 °C |
| Housing material | HCMC |
| Cover material | Plastic, opal |
| Colour | white |
| Manufacturer's Warranty | 5 years |
| Includes corner wall mount | No |
| EPREL Category | Light source |
