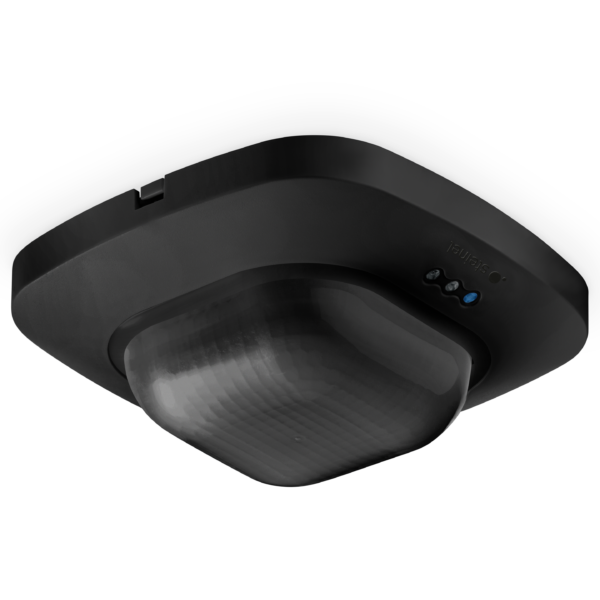

| Surface | Presence detector |
| Power supply, detail | KNX bus |
| With bus coupling | Yes |
| Settings via | ETS software Remote control Bus Smart Remote |
| With remote control | No |
| Dimensions (L x W x H) | 69 x 120 x 120 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Type of interconnection | Master/master Master/slave |
| Interconnection via | KNX bus |
| Application, place | Indoors |
| Application, room | classroom lecture hall open-plan office high-bay warehouse production facilities conference room / meeting room duty room recreation room changing room sports hall reception / lobby multi-storey / underground car park Indoors |
| Installation site | ceiling |
| Type of installation | Concealed wiring |
| Mounting height | 2,50 – 10,00 m |
| Optimum mounting height | 2,8 m |
| Mounting height max. | 10,00 m |
| With motion detector | Yes |
| Detection angle | 360 ° |
| Angle of aperture | 160 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | No |
| Electronic scalability | No |
| Mechanical scalability | Yes |
| Radial reach | 8 x 8 m (64 m²) |
| Tangential reach radius | 20 x 20 m (400 m²) |
| Presence reach | 8 x 8 m (64 m²) |
| Detection levels | 13 |
| Switching zones | 4800 switching zones |
| Photo-cell controller | Yes |
| Twilight setting | 10 – 1000 lx |
| Twilight setting TEACH | Yes |
| Time setting | 10 s – 1092 Min. |
| Main light adjustable | 0 - 100 % |
| Basic light level function | Yes |
| Basic light level function time | Permanently ON 1-255 min all night |
| Basic light level function in per cent | 10 – 50 % |
| Basic light level function percentage, from | 10 % |
| KNX functions | Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 4x Presence output Day / night function Logic gate |
| Soft light start | Yes |
| Continuous light | selectable |
| Constant-lighting control | Yes |
| IP rating | IP20 |
| Protection class | II |
| Ambient temperature | from -25 up to 55 °C |
| Material | Plastic |
| Colour | black |
| Colour, RAL | 9005 |
| Manufacturer's Warranty | 5 years |
| Includes corner wall mount | No |
