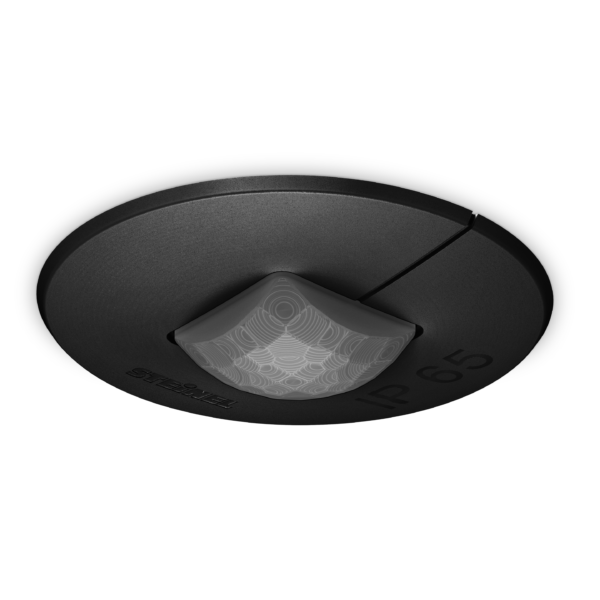

| Surface | Presence detector |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Settings via | Remote control Smart Remote |
| With remote control | No |
| Dimensions (Ø x H) | 43 x 75 mm |

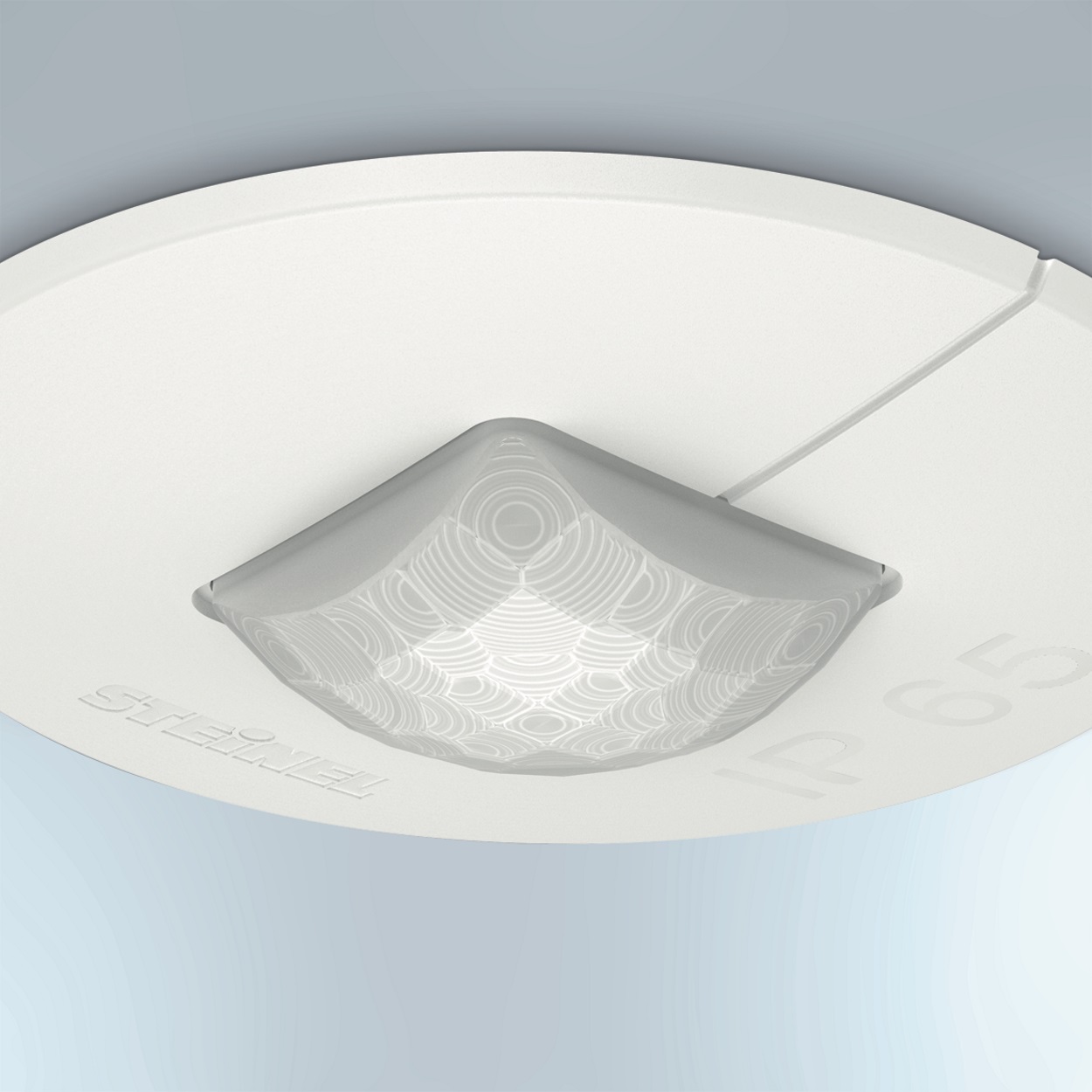

| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Type of interconnection | Master/master Master/slave |
| Interconnection via | Cable |
| Application, place | Indoors |
| Application, room | one-person office hotel room care room function room / ancillary room WC / washroom Indoors |
| Installation site | ceiling |

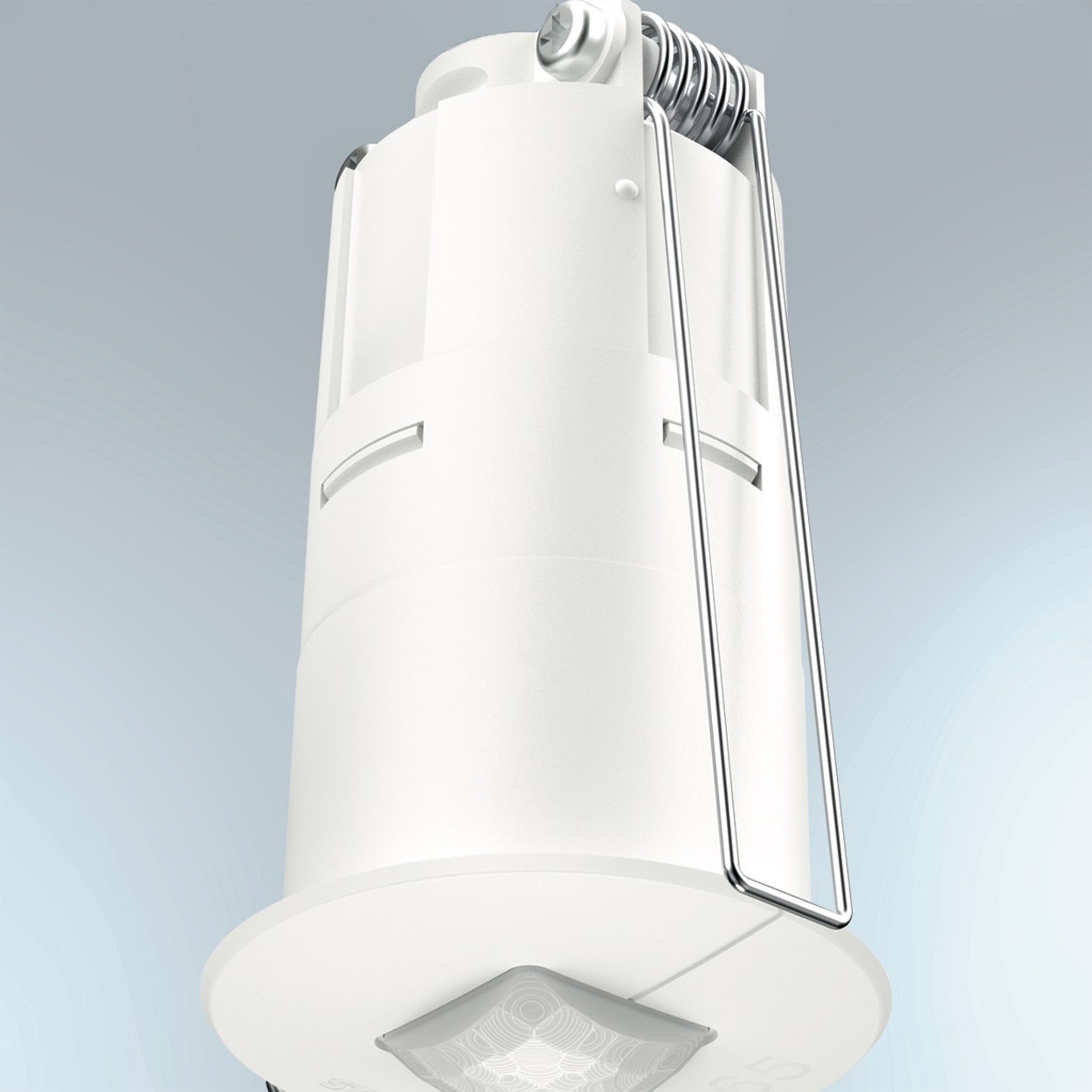

| Type of installation | In-ceiling installation |
| Mounting height | 2,00 – 5,00 m |
| Optimum mounting height | 2,8 m |
| Mounting height max. | 5,00 m |
| Output | 1000 W |
| Power consumption | 0,5 W |
| With motion detector | Yes |
| Detection angle | 360 ° |
| Angle of aperture | 90 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | No |
| Electronic scalability | No |
| Mechanical scalability | No |
| Radial reach | 4 x 4 m (16 m²) |
| Tangential reach radius | 6 x 6 m (36 m²) |
| Presence reach | 4 x 4 m (16 m²) |
| Switching zones | 168 switching zones |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 1000 lx |
| Twilight setting TEACH | Yes |
| Time setting | 5 s – 60 Min. |
| Main light adjustable | No |
| Basic light level function | No |
| Output | 1000 W |
| Soft light start | No |
| Continuous light | selectable |
| Constant-lighting control | No |
| Switching output 1, resistive | 1000 W |
| Fluorescent lamps, electronic ballast | 500 W |
| Fluorescent lamps, uncorrected | 400 VA |
| Fluorescent lamps, series-corrected | 400 VA |
| Fluorescent lamps, parallel-corrected | 400 VA |
| Switching output 1, low-voltage halogen lamps | 1000 VA |
| LED lamps < 2 W | 100 W |
| LED lamps > 2 W < 8 W | 300 W |
| LED lamps > 8 W | 600 W |
| Capacitive load in uF | 176 µF |
| Switching output 1, number of LEDs / fluorescent lamps | 8 pcs. |
| Switching output 1, floating | No |
| IP rating | IP65 |
| Ambient temperature | from -25 up to 55 °C |
| Material | Plastic |
| Housing material | Plastic |
| Cover material | without cover |
| Colour | black |
| Colour, RAL | 9005 |
| Manufacturer's Warranty | 5 years |
| Includes corner wall mount | No |
