| Type | Presence detector |
| Dimensions (Ø x H) | 94 x 50 mm |
| Mains power supply | 16 V |
| Sensor Technology | passive infrared |
| Application, place | Indoors |
| Application, place, room | one-person office, hotel room, care room, function room / ancillary room, WC / washroom, Indoors |
| Installation site | ceiling |
| Type of installation | Concealed wiring |
| Switching zones | 408 switching zones |
| Electronic scalability | No |
| Mechanical scalability | No |

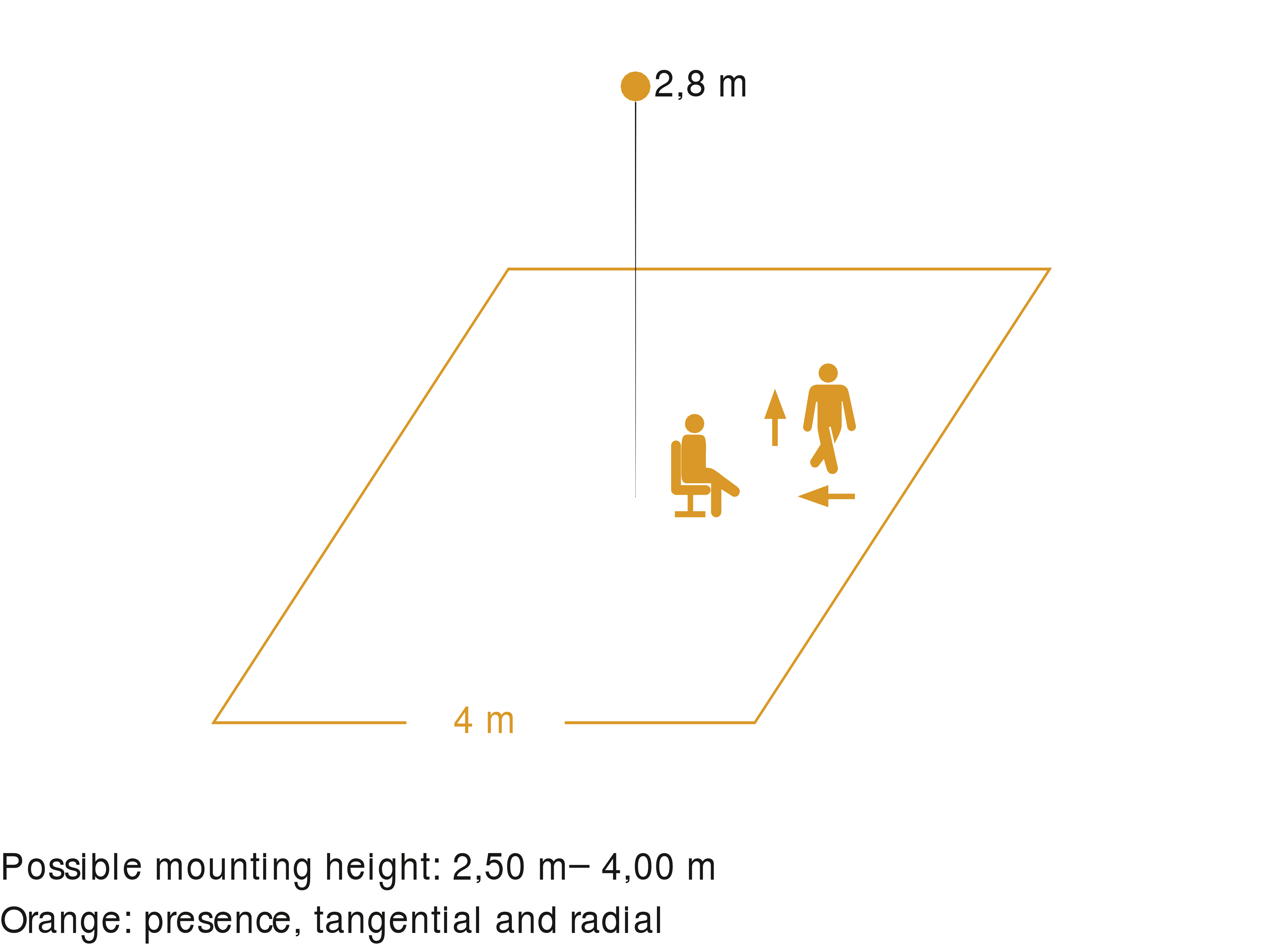

| Mounting height | 2,50 – 4,00 m |
| Optimum mounting height | 2,8 m |
| Detection angle | 360 ° |
| Angle of aperture | 71 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | No |
| Reach, detail | Retina lens and hexagonal Fresnel structure |
| Reach, radial | 4 x 4 m (16 m²) |
| Reach, tangential | 4 x 4 m (16 m²) |
| Reach, presence | 4 x 4 m (16 m²) |
| Twilight setting TEACH | No |
| Twilight setting | 10 – 1000 lx |
| Time setting | 30 sec – 30 min |
| Switching output 2, floating | No |
| Control output, DALI | Addressable/slave |
| Constant-lighting control | Yes |
| Basic light level function | No |
| Settings via | Bus |
| With remote control | No |
| Interconnection | Yes |
| Type of interconnection | Master/slave |
| IP rating | IP20 |
| Material | Plastic |
| Ambient temperature | 0 – 40 °C |
| Colour | white |
| Colour, RAL | 9010 |
| Manufacturer's Warranty | 5 years |
| Version | DALI-2 Input Device - round |
| FIL_2_PRO_Interface | DALI-2 Input Device |
| FIL_4_PRO_Sensor_Technology | Passive infrared |
