IS 2160 ECO white

IS 2160 ECO white
EAN: 4007841 606015
E-No: 535949270
This one sees everything. Infrared motion detector IS 2160 ECO for indoors and out, ideal for entrances and the smaller-size property, ideal installation height 2 m, 160° angle of coverage, max. reach 12 m (tangential), selectable time and twilight threshold, turns through 40° and tilts through 70°.
  • UV-resistant plastic
SurfaceMotion detectors
Mains power supply230 – 240 V / 50 Hz
Settings viaPotentiometers
With remote controlNo
Dimensions (L x W x H)73 x 78 x 113 mm
Sensor Technologypassive infrared
InterconnectionYes
Type of interconnectionMaster/master
Interconnection viaCable
Application, placeOutdoors Indoors
Application, roomoutdoors front door all round the building terrace / balcony courtyard & driveway
Installation sitewall
Type of installationSurface wiring
Mounting height1,80 – 3,00 m
Optimum mounting height2 m
Mounting height max.3,00 m
Output600 W
Detection angle160 °
Angle of aperture40 °
Sneak-by guardNo
Capability of masking out individual segmentsYes
Electronic scalabilityNo
Mechanical scalabilityNo

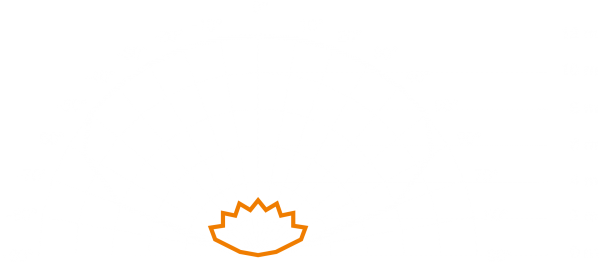

Radial reachr = 3 m (13 m²)
Tangential reach radiusr = 12 m (201 m²)
Detection levels5
Switching zones260 switching zones
Photo-cell controllerYes
Twilight setting2 – 2000 lx
Twilight setting TEACHNo
Time setting8 s – 35 Min.
Main light adjustableNo
Basic light level functionNo
Output600 W
Soft light startNo
Continuous lightselectable
Constant-lighting controlNo
Switching output 1, resistive600 W
Fluorescent lamps, electronic ballast250 W
Fluorescent lamps, uncorrected500 VA
Fluorescent lamps, series-corrected500 VA
Fluorescent lamps, parallel-corrected500 VA
Switching output 1, low-voltage halogen lamps500 VA
LED lamps < 2 W100 W
LED lamps > 2 W < 8 W125 W
LED lamps > 8 W250 W
Capacitive load in uF88 µF
IP ratingIP54
Ambient temperaturefrom -20 up to +50 °C
MaterialPlastic
Colourwhite
Colour, RAL9010
Manufacturer's Warranty5 years
IDs, certificatesVDE
Includes corner wall mountNo
show all data
IS 2160 ECO white
Designation
Data sheet
Tendering text
Operating instructions
declaration of conformity
Revit (rfa)
