| Mains power supply | 230 – 240 V / 50 Hz |
| Settings via | Potentiometers |
| With remote control | No |

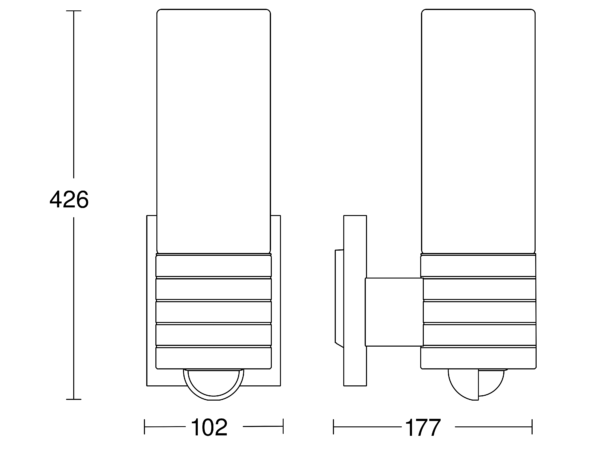

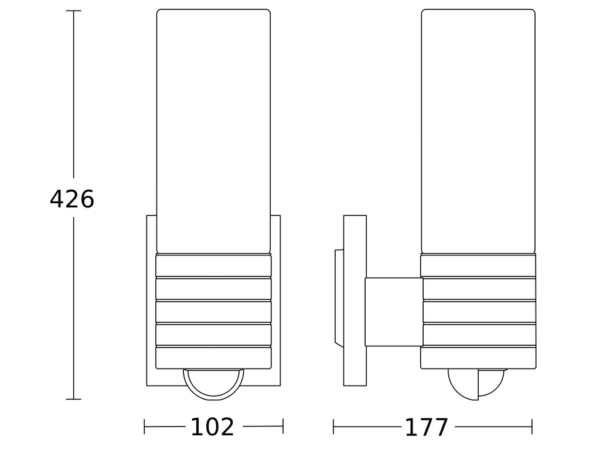

| Dimensions (L x W x H) | 177 x 102 x 426 mm |
| Sensor Technology | passive infrared |
| Interconnection | No |
| Slave modeselectable | No |
| Application, place | Outdoors |
| Application, room | outdoors front door all round the building terrace / balcony courtyard & driveway |
| Installation site | wall |
| Type of installation | Surface wiring |
| Mounting height | 1,80 – 6,00 m |
| Optimum mounting height | 2 m |
| Mounting height max. | 6,00 m |
| Output | 9,87 W |
| Efficiency | 71,2 lm/W |
| Measured luminous flux (360°) | 703 lm |
| Colour temperature | 3000 K |
| Colour variation LED | SDCM3 |
| Colour Rendering Index | 80-89 |
| With lamp | Yes, LED lamp |
| Lamp | LED can be replaced |
| LED life expectancy (max. °C) | 25000 h |

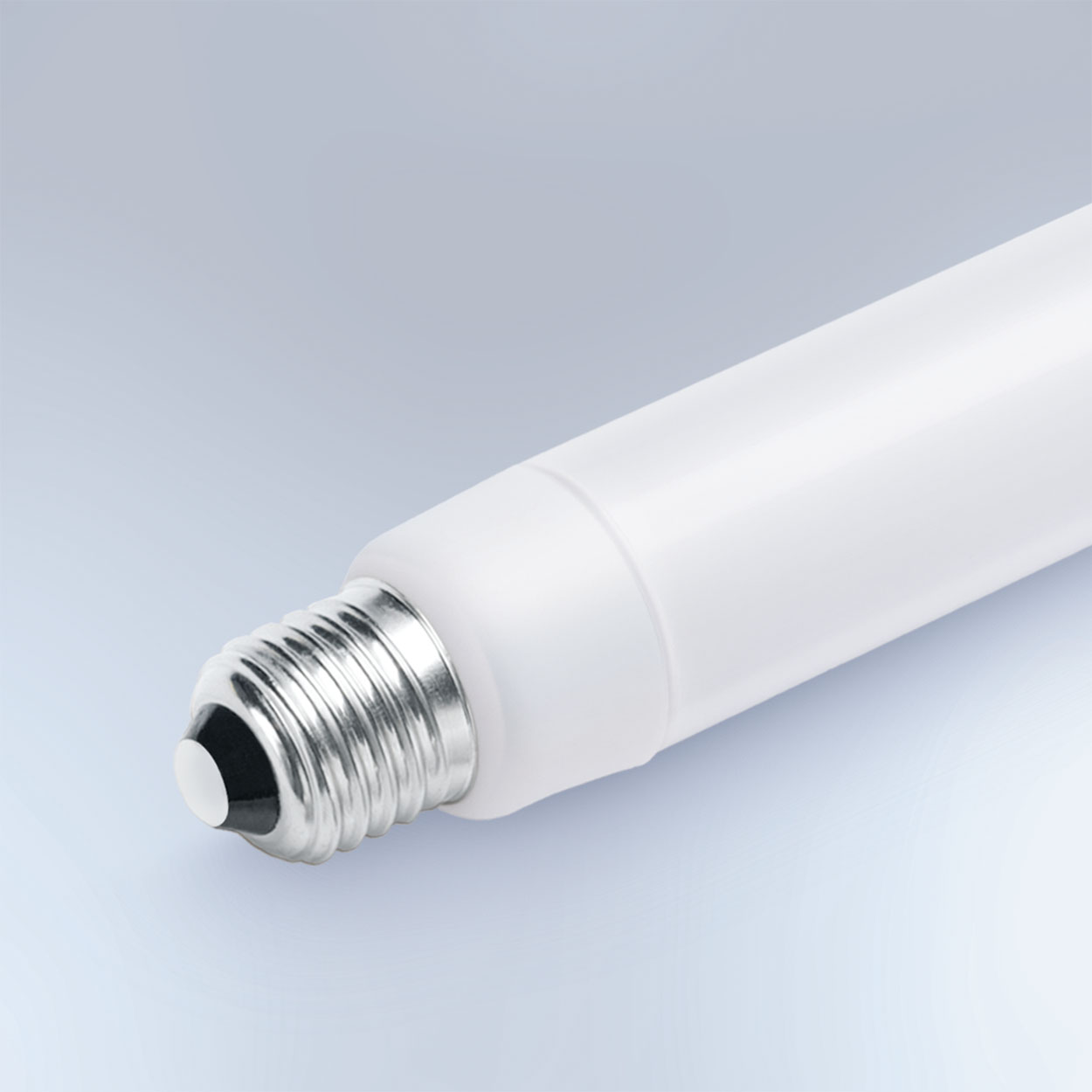

| Base | E27 |
| LED cooling system | Passive Thermo Control |
| With motion detector | Yes |
| Detection angle | 240 ° |
| Angle of aperture | 180 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | No |

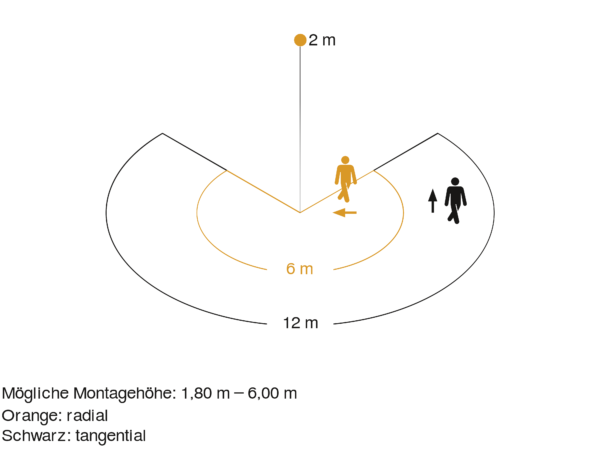

| Radial reach | r = 6 m (75 m²) |
| Tangential reach radius | r = 12 m (302 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 2000 lx |
| Time setting | 5 s – 15 Min. |
| Basic light level function | No |
| Output | 9,87 W |
| Soft light start | Yes |

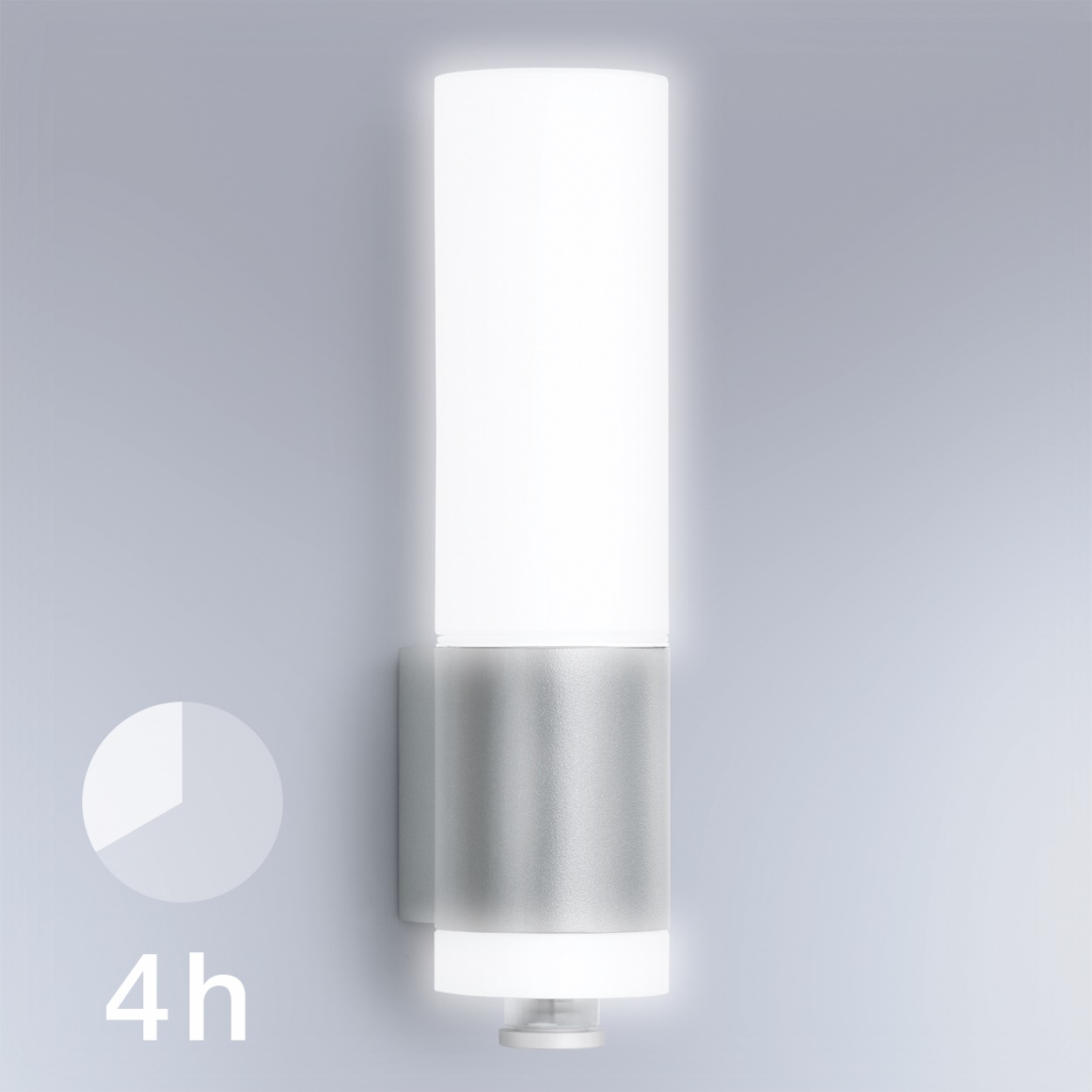

| Continuous light | selectable, 4h |
| Impact resistance | IK03 |
| IP rating | IP44 |
| Protection class | I |
| Ambient temperature | from -20 up to 50 °C |
| Housing material | Stainless steel |

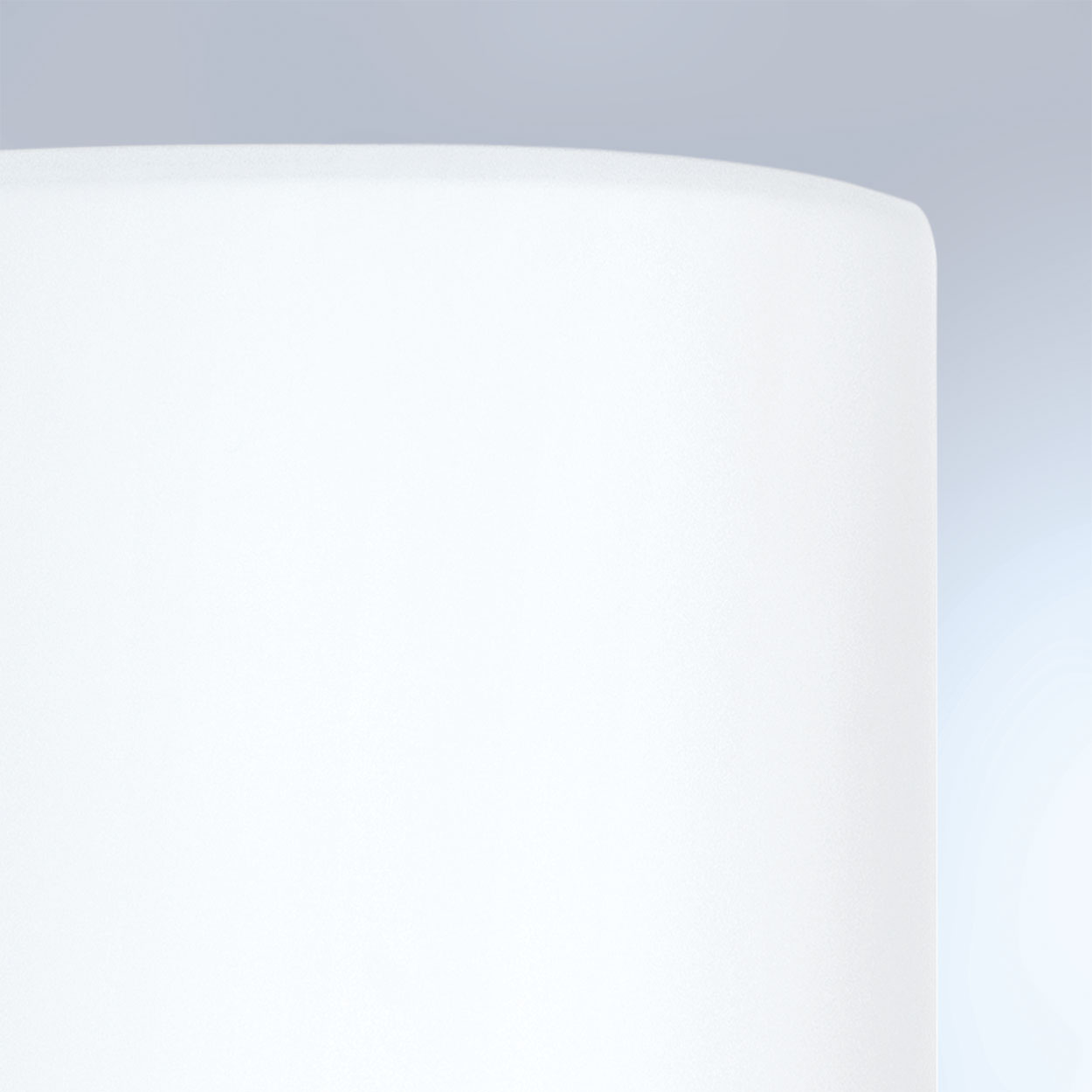

| Cover material | Glass opal |
| Manufacturer's Warranty | 3 years |
| Cover material delivery | shrouds |
| EPREL Category | Surrounded product with separate light source (e.g. E27) |
