| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Settings via | Potentiometers |

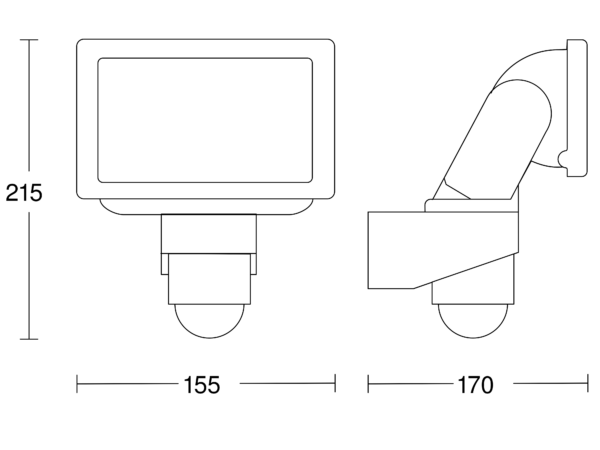

| Dimensions (L x W x H) | 176 x 155 x 210 mm |
| Sensor Technology | passive infrared |
| Interconnection | No |
| Application, place | Outdoors |
| Application, room | outdoors all round the building courtyard & driveway |
| Installation site | wall corner |
| Type of installation | Surface wiring |
| Mounting height | 1,8 – 4 m |
| Optimum mounting height | 2 m |
| Mounting height max. | 4,00 m |
| Output | 14,7 W |
| Measured luminous flux (360°) | 1486 lm |
| Colour temperature | 4000 K |
| Colour variation LED | SDCM3 |
| Colour Rendering Index | 80-89 |
| With lamp | Yes, STEINEL LED system |
| Lamp | LED cannot be replaced |
| LED life expectancy (max. °C) | 50000 h |
| Lifetime LED L70B50 (25°) | > 36000 h |
| Base | without |
| With motion detector | Yes |
| Detection angle | 240 ° |
| Angle of aperture | 180 ° |
| Sneak-by guard | Yes |

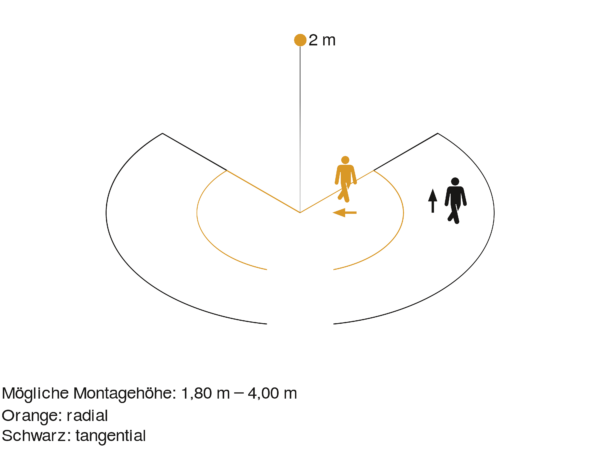

| Tangential reach radius | r = 12 m (302 m²) |
| Twilight setting | 2 – 1000 lx |
| Time setting | 10 s – 15 Min. |
| Main light adjustable | No |
| Output | 14,7 W |
| Soft light start | No |
| Impact resistance | IK03 |
| IP rating | IP44 |
| Protection class | I |
| Ambient temperature | from -10 up to 30 °C |
| Housing material | Aluminium |
| Cover material | Glass transparent |
| Colour | white |
| Manufacturer's Warranty | 3 years |
| Includes corner wall mount | No |
| Cover material delivery | shrouds |
| EPREL Category | Light source |
