Mesoma Slave

Mesoma Slave
Article number: 220492

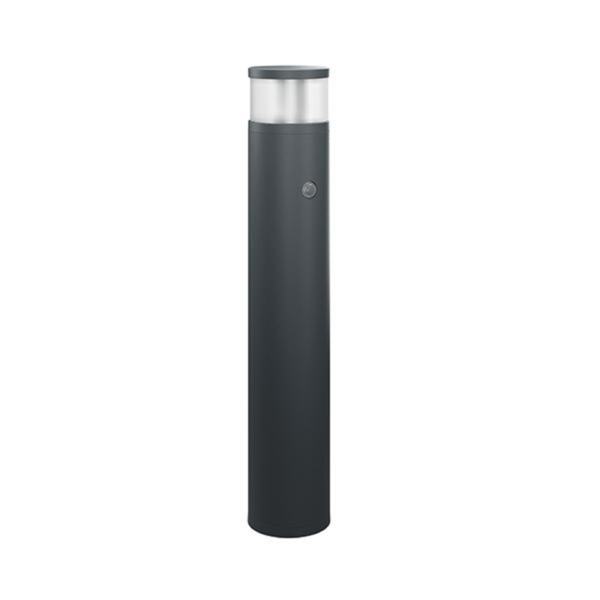

Mesoma bollard luminaire is a timeless LED fixture of the latest generation. Thanks to the high quality processing and its resistance, it meets the requirements for public access areas. As a single luminaire, it convinces with adjustable brightness for the main and orientation light as well as with the built-in motion detector. Thanks to the integrated radio communication, it is very easy to set up an intelligent network with several luminaires. In conjunction with the neighbor function, the light rushes ahead of the user. Old luminaires can be replaced without rewiring. One master luminaire and any number of slave luminaires are used per installation.
  • Intelligent bollard luminaire for exciting outdoor lighting solutions
  • Built-in lighting control including motion detection, orientation light and neighbor function (for master and slave luminaires)
  • Master luminaires additionally include GPS for precise time control and light measurement for the local lighting network
  • Optionally available with an additional PIR sensor and 180° coverage for targeted limitation of light output.
  • Wireless networking by radio
  • High-quality, noble workmanship with glare-free illumination
  • Shock and vandal proof
Type of installationFree standing floor

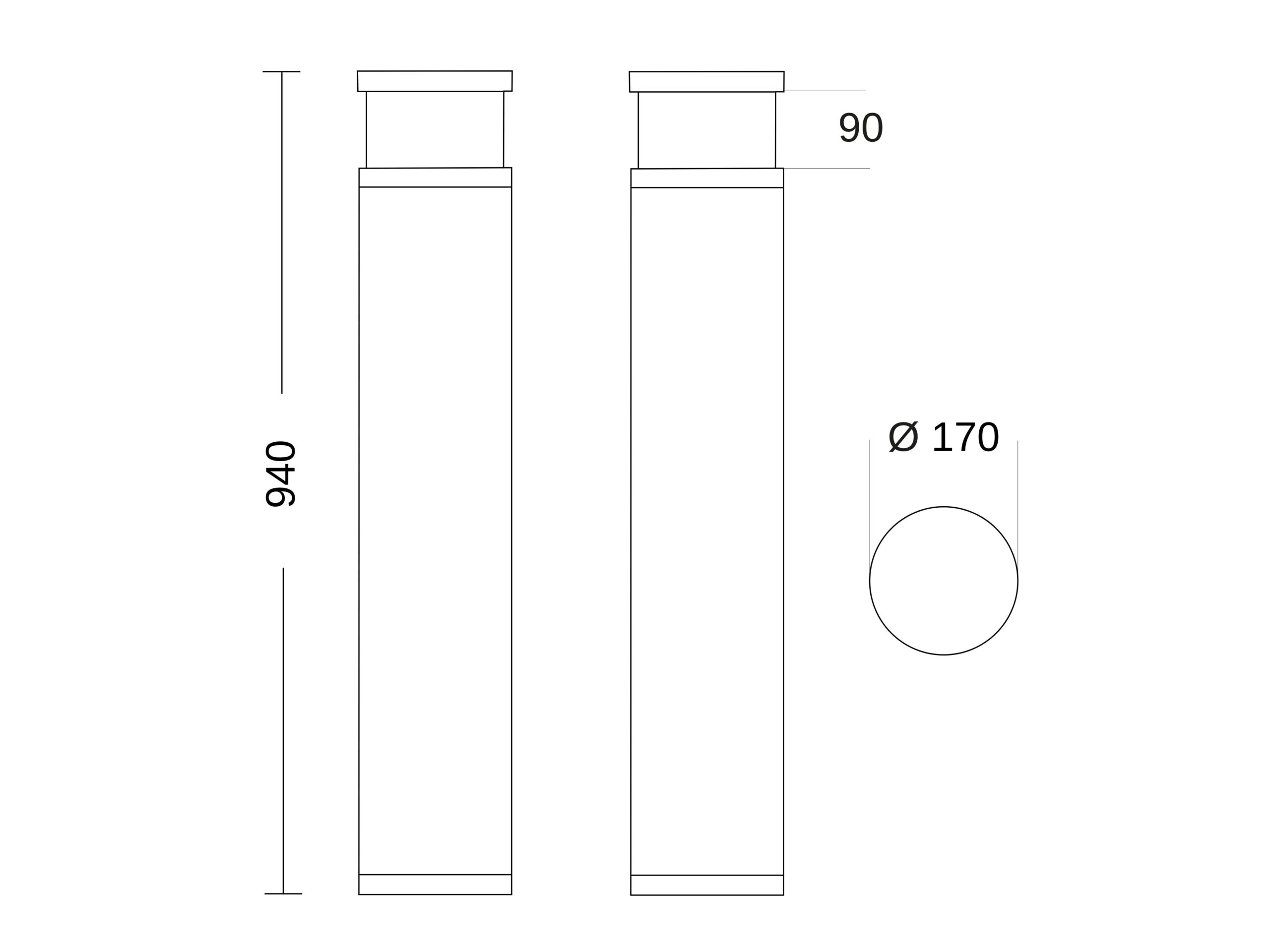

Dimensions (Ø x H)170 x 940 mm
Mains power supply220...240 V / 50 – 60 Hz
Output16 W
Luminous flux1030 lm
Luminaire efficacy64 lm/W
With light regulation program controlYes
With radio network controlYes
With motion detectorYes
Sensor Technologypassive infrared
Detection angle100°
Tangential reach radius5 m
With light sensorNo
Dimming DALIYes
Colour temperature3000...3000 K
Colour Rendering Index CRI80-89
Type of cablingSuitable for through wiring
LampLED
Exchangeable control gearYes
LED life expectancy (25 °C)70000 h
IP ratingIP65
Protection classI
Impact resistanceIK09
Ambient temperature-20...40 °C
Housing materialAluminum
ColourAnthracite
Cover materialPlastic transparent
Beam angle159°
Energy efficiency class of integrated lampG
Manufacturer's Warranty5 years
show all data
Dieser Artikel hat keine spezifischen Highlights.
Bei Fragen stehen wir gerne zur Verfügung.
light distribution curve
light distribution curve

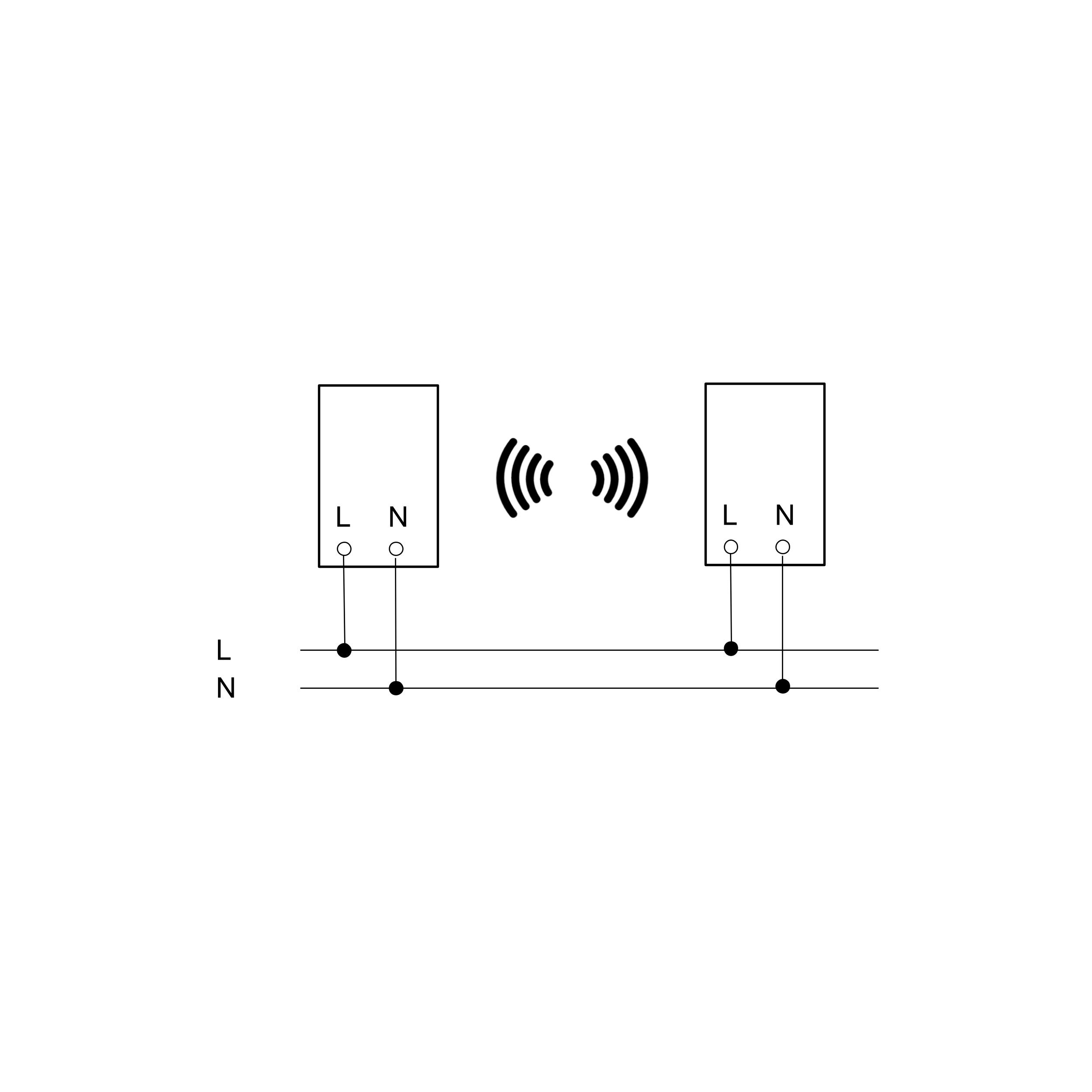

Wiring diagram Wiring diagram
Designation
Data sheet Download
Tendering text Download
light distribution curve Download
