| Surface | Presence detector |

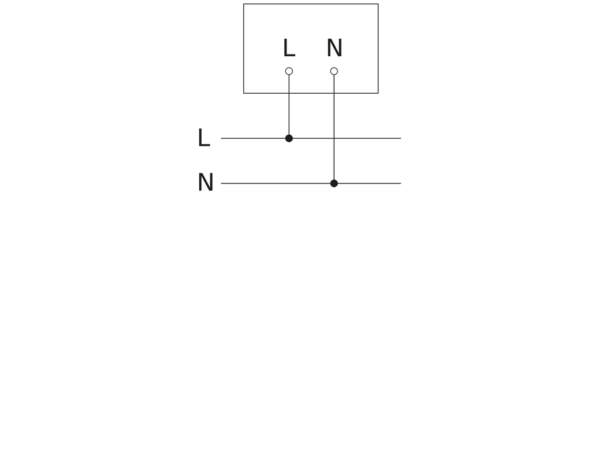

| Mains power supply | 220 – 240 V / 50 – 60 Hz |

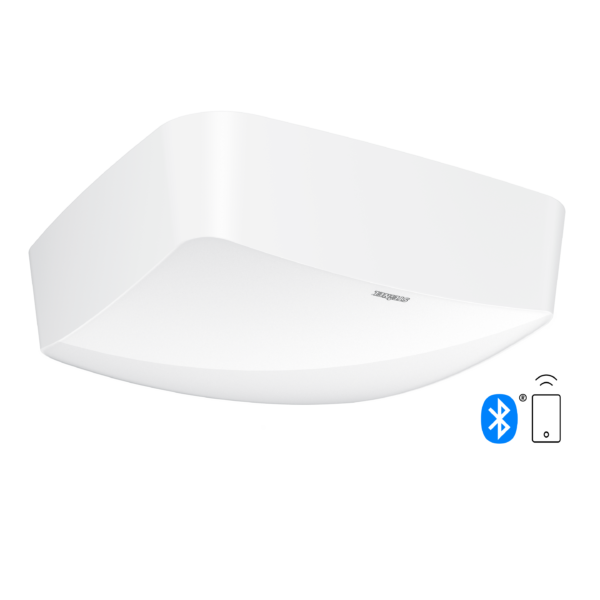

| Settings via | Bluetooth |
| With remote control | No |
| Dimensions (L x W x H) | 45 x 123 x 123 mm |
| Sensor Technology | High frequency |
| Transmitter power | < 1 mW |
| HF-system | 7,2 GHz |
| Interconnection | Yes |
| Type of interconnection | Master/slave |
| Interconnection via | Bluetooth |
| Application, place | Indoors |
| Application, room | classroom lecture hall one-person office open-plan office high-bay warehouse production facilities conference room / meeting room hotel room care room duty room recreation room dining hall / staff restaurant changing room kitchenette sports hall reception / lobby WC / washroom warehouse Indoors |
| Installation site | ceiling |
| Type of installation | Surface wiring |
| Mounting height | 2,00 – 12,00 m |
| Optimum mounting height | 2,8 m |
| Mounting height max. | 12,00 m |
| With motion detector | Yes |
| Capture | also through glass, wood and stud walls |
| Detection angle | 360 ° |
| Angle of aperture | 160 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | No |
| Electronic scalability | Yes |
| Mechanical scalability | No |

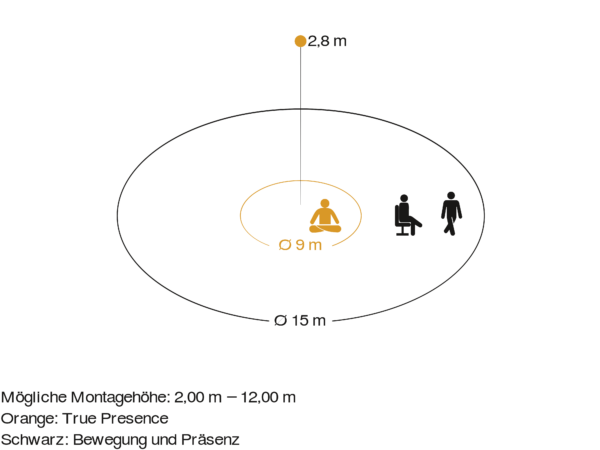

| Radial reach | Ø 15 m (177 m²) |
| Tangential reach radius | Ø 15 m (177 m²) |
| Presence reach | Ø 15 m (177 m²) |
| True Presence radial reach | Ø 9 m (64 m²) |
| Photo-cell controller | No |
| Twilight setting TEACH | No |
| Main light adjustable | No |
| Basic light level function | No |
| Soft light start | No |
| Continuous light | selectable |
| Constant-lighting control | No |
| IP rating | IP54 |
| Ambient temperature | from -20 up to 50 °C |
| Material | Plastic |
| Colour | white |
| Colour, RAL | 9003 |
| Manufacturer's Warranty | 5 years |
| Includes corner wall mount | No |
