| Surface | Other |
| Type of accessory | Corner adapter |
| Mains power supply | 100 – 240 V / 50 – 60 Hz |
| Power supply, detail | 500 VA max., 120 V |
| Settings via | Remote control Potentiometers Smart Remote |
| With remote control | Yes |

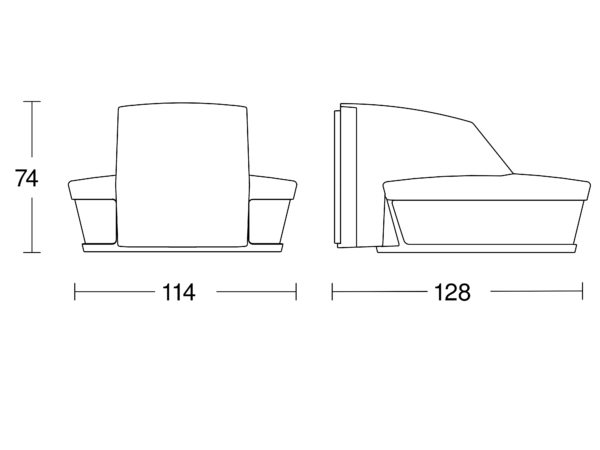

| Dimensions (L x W x H) | 128 x 114 x 74 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Type of interconnection | Master/master |
| Interconnection via | Cable |
| Application, place | Indoors Outdoors |
| Application, room | multi-storey / underground car park outdoors warehouse front door all round the building courtyard & driveway Indoors |
| Installation site | wall corner |
| Type of installation | Surface wiring |
| Mounting height | 2,00 – 5,00 m |
| Optimum mounting height | 2 m |
| Mounting height max. | 5,00 m |
| Output | 2000 W |
| With motion detector | Yes |
| Detection angle | 300 ° |
| Angle of aperture | 180 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | Yes |

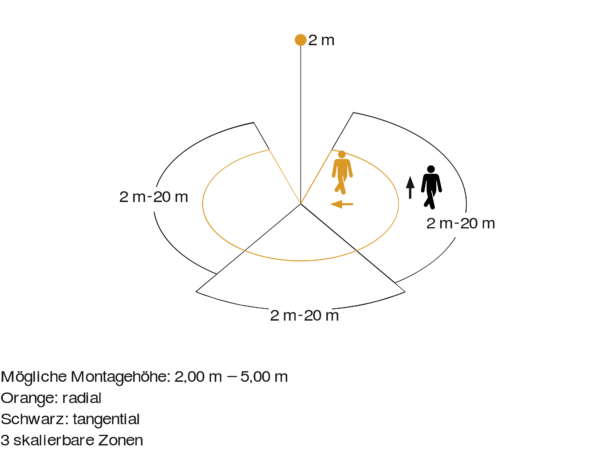

| Reach, detail | Reach adjustable from 2 - 20 m in 3 directions (100° in each) |
| Radial reach | r = 4 m (42 m²) |
| Tangential reach radius | r = 20 m (1047 m²) |
| Detection levels | 11 |
| Switching zones | 1360 switching zones |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 1000 lx |
| Twilight setting TEACH | Yes |
| Time setting | 5 s – 15 Min. |
| Main light adjustable | No |
| Basic light level function | No |
| Output | 2000 W |
| Functions | Normal / test mode Manual ON / ON-OFF |
| Soft light start | No |
| Continuous light | selectable, 4h |
| Constant-lighting control | No |
| Switching output 1, resistive | 2000 W |
| Fluorescent lamps, electronic ballast | 1500 W |
| Fluorescent lamps, uncorrected | 1000 VA |
| Fluorescent lamps, series-corrected | 700 VA |
| Fluorescent lamps, parallel-corrected | 1000 VA |
| Switching output 1, low-voltage halogen lamps | 1000 VA |
| LED lamps < 2 W | 100 W |
| LED lamps > 2 W < 8 W | 300 W |
| LED lamps > 8 W | 600 W |
| Capacitive load in uF | 176 µF |
| Switching output 1, number of LEDs / fluorescent lamps | 50 pcs. |
| IP rating | IP54 |
| Ambient temperature | from -20 up to 50 °C |
| Material | Plastic |
| Colour | white |
| Colour, RAL | 9010 |
| Manufacturer's Warranty | 5 years |
| IDs, certificates | VDE |
| Includes corner wall mount | Yes |
