| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Settings via | Wi-Fi |

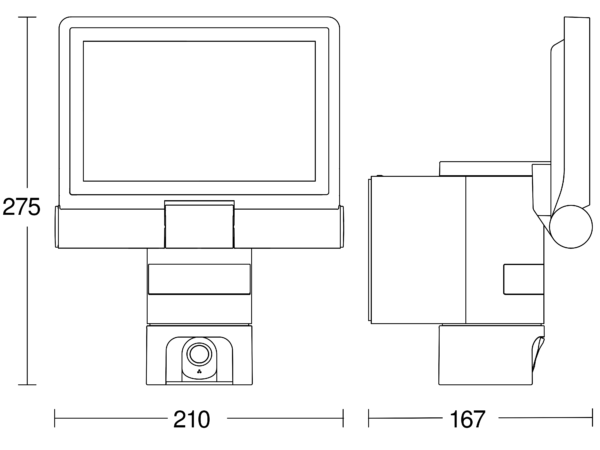

| Dimensions (L x W x H) | 167 x 210 x 275 mm |
| Sensor Technology | passive infrared |
| Interconnection via | Wi-Fi |
| Application, place | Outdoors |
| Application, room | outdoors all round the building terrace / balcony courtyard & driveway |
| Installation site | wall |
| Type of installation | Surface wiring |
| Mounting height | 1,80 – 2 m |
| Optimum mounting height | 2 m |
| Mounting height max. | 2,00 m |
| Output | 21 W |
| Measured luminous flux (360°) | 2310 lm |
| Colour temperature | 3000 K |
| Colour variation LED | SDCM3 |
| Colour Rendering Index | = 80 |
| With lamp | Yes, LED lamp |
| Lamp | LED cannot be replaced |
| LED life expectancy (max. °C) | 50000 h |
| Lifetime LED L70B50 (25°) | > 36000 h |
| Base | without |
| LED cooling system | Passive Thermo Control |
| With motion detector | Yes |
| Detection angle | 180 ° |
| Angle of aperture | 45 ° |
| Sneak-by guard | No |
| Capability of masking out individual segments | No |
| Electronic scalability | Yes |
| Mechanical scalability | No |

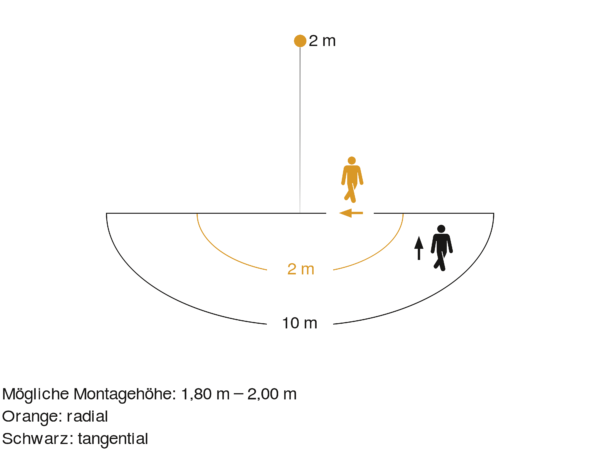

| Radial reach | r = 2 m (6 m²) |
| Tangential reach radius | r = 10 m (157 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 10 – 10000 lx |
| Twilight setting TEACH | No |
| Time setting | 60 s – 15 Min. |
| Main light adjustable | 30 - 100 % |
| Basic light level function | Yes |
| Basic light level function time | all night |
| Basic light level function in per cent | 0 – 40 % |
| Basic light level function percentage, from | 0 % |
| Output | 21 W |
| Functions | Iintercom system Camera |
| Soft light start | No |
| Continuous light | selectable |
| Impact resistance | IK03 |
| IP rating | IP44 |
| Protection class | I |
| Ambient temperature | from -10 up to 40 °C |
| Housing material | Aluminium |
| Cover material | Glass transparent |
| Colour | Anthracite |
| Manufacturer's Warranty | 3 years |
| Includes corner wall mount | No |
| EPREL Category | Light source |
