| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Settings via | Potentiometers |

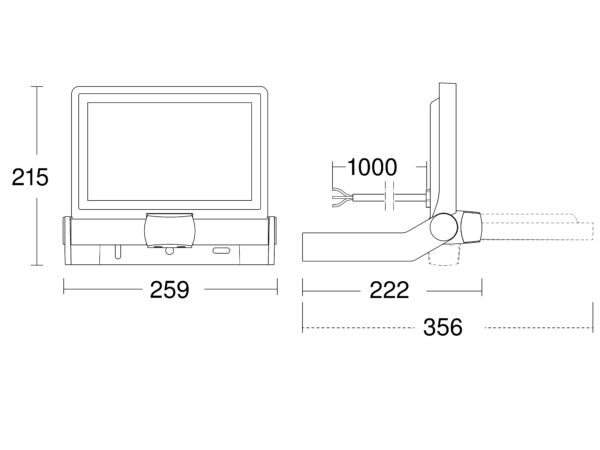

| Dimensions (L x W x H) | 222 x 259 x 215 mm |
| Sensor Technology | passive infrared |
| Application, place | Outdoors |
| Application, room | outdoors courtyard & driveway |
| Installation site | wall ceiling |
| Mounting height | 1,8 – 3 m |
| Optimum mounting height | 2 m |
| Mounting height max. | 3,00 m |
| Output | 42,6 W |
| Measured luminous flux (360°) | 4200 lm |
| Colour temperature | 3000 K |
| Colour variation LED | SDCM3 |
| Colour Rendering Index | 80-89 |
| With lamp | Yes, STEINEL LED system |
| Lamp | LED cannot be replaced |
| LED life expectancy (max. °C) | 50000 h |
| Lifetime LED L70B50 (25°) | > 36000 h |
| Drop in luminous flux in accordance with LM80 | L70B10 |
| Base | without |
| LED cooling system | Passive Thermo Control |
| With motion detector | Yes |
| Detection angle | 180 ° |
| Sneak-by guard | No |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | No |

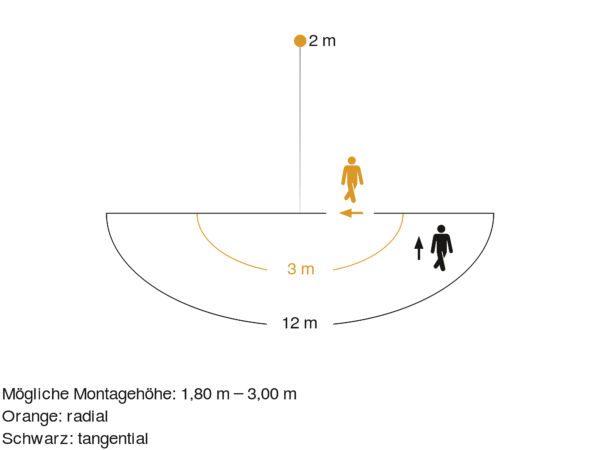

| Radial reach | r = 3 m (14 m²) |
| Tangential reach radius | r = 12 m (226 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 2000 lx |
| Time setting | 8 s – 35 Min. |
| Basic light level function | No |
| Output | 42,6 W |
| Impact resistance | IK03 |
| IP rating | IP44 |
| Protection class | I |
| Ambient temperature | from -20 up to 40 °C |
| Housing material | Aluminium |
| Cover material | Glass transparent |
| Manufacturer's Warranty | 3 years |
| EPREL Category | Surrounded product with integrated light source |
