Factory hall ANDRITZ Soutec AG

Project Management A‑Z

Anyone planning a lighting refur­bishment with us need not worry about implementation.

Two huge factory halls, 11 metres high — and insuf­fi­ciently lit. The outdated spot lighting based on sodium vapour was outdated. But for the production of high-quality laser welding systems, only the best light is good enough.
We presented ANDRITZ Soutec AG with a complete package. In addition to modern and energy-effi­cient spot­lights, presence detectors with brightness sensors and a lighting control system for constant light regu­lation, we also took care of the entire “all-round”. Profes­sional disposal of the lumi­naire housings and lamps weighing tons, for example: no problem. Lifting platform for the instal­lation: to be organised. Appli­cation for subsidies: already done!

Project information
  • CustomerANDRITZ Soutec AG, Neftenbach
  • LocationFactory halls Neftenbach
  • Appli­cationMotion detector and light control system
  • Our serviceOverall coor­di­nation with advice, planning and imple­men­tation responsibility
  • ProductsIS 3360 MX Highbay DALI‑2 Input Device

nevalux

shows how: Precise work thanks to precise light.

A lighting refur­bishment is worth­while. On several levels:

Solution

Slowly but surely, the lights went out in the work­shops. Replacement lights were no longer available. There was only one way to go: replace the entire lighting.

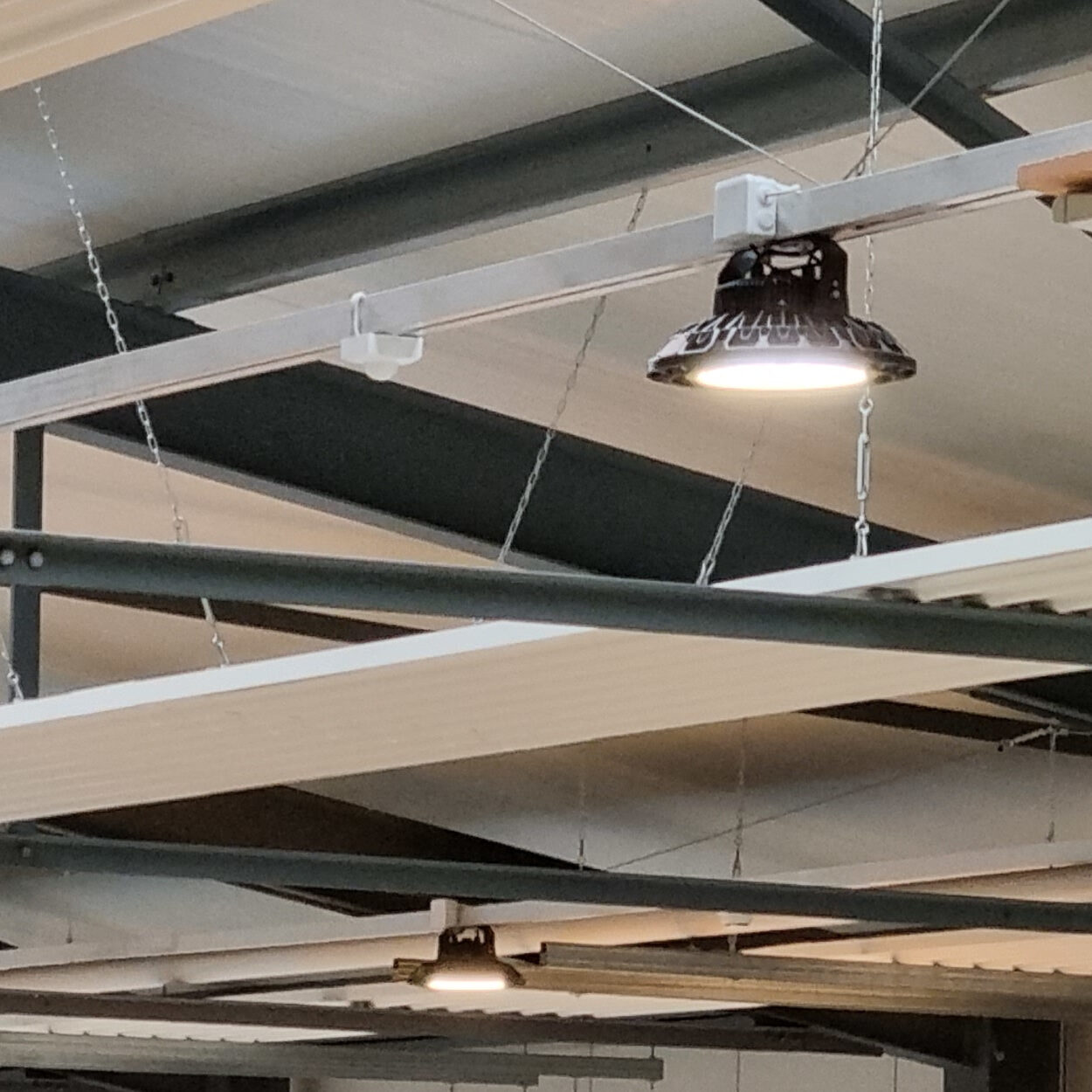

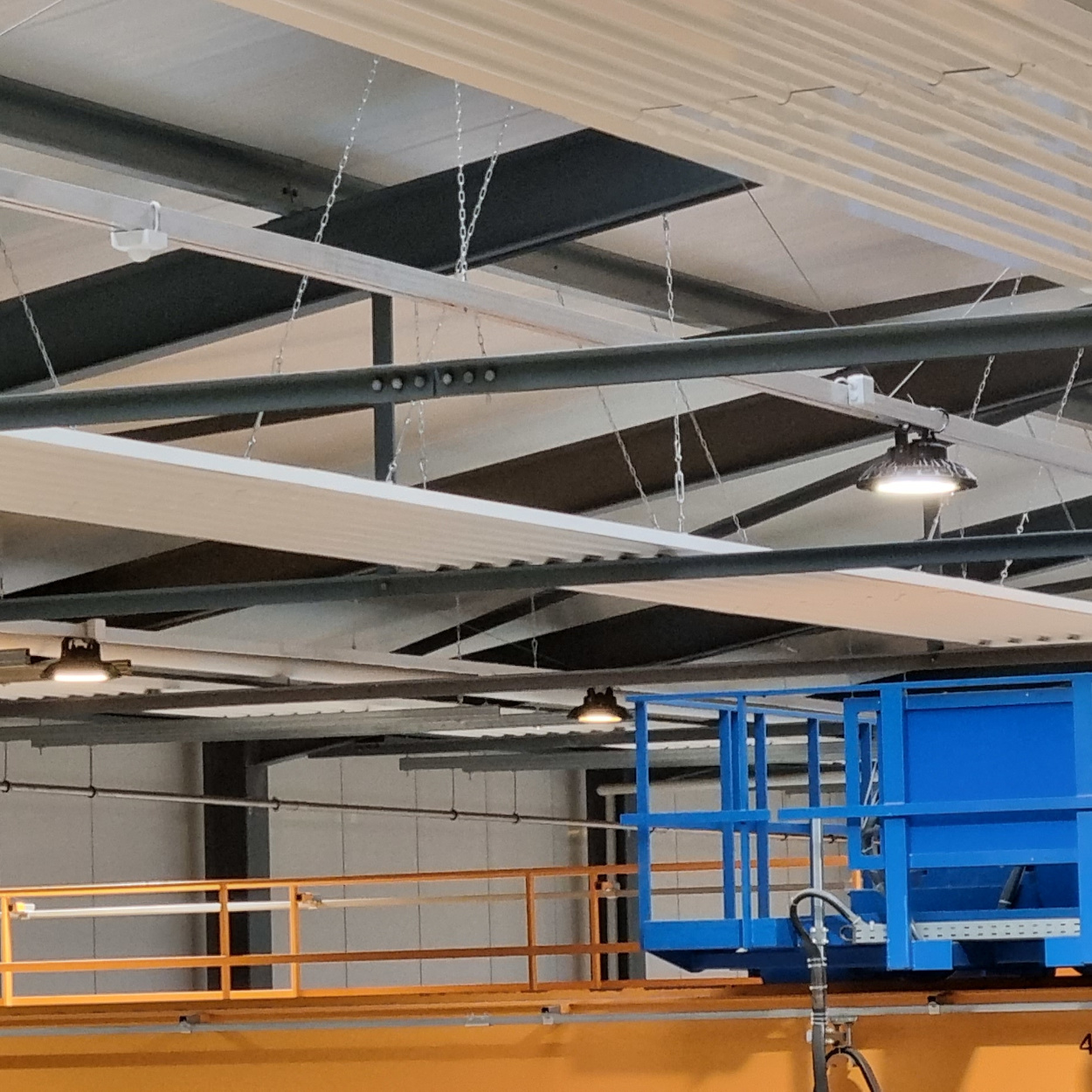

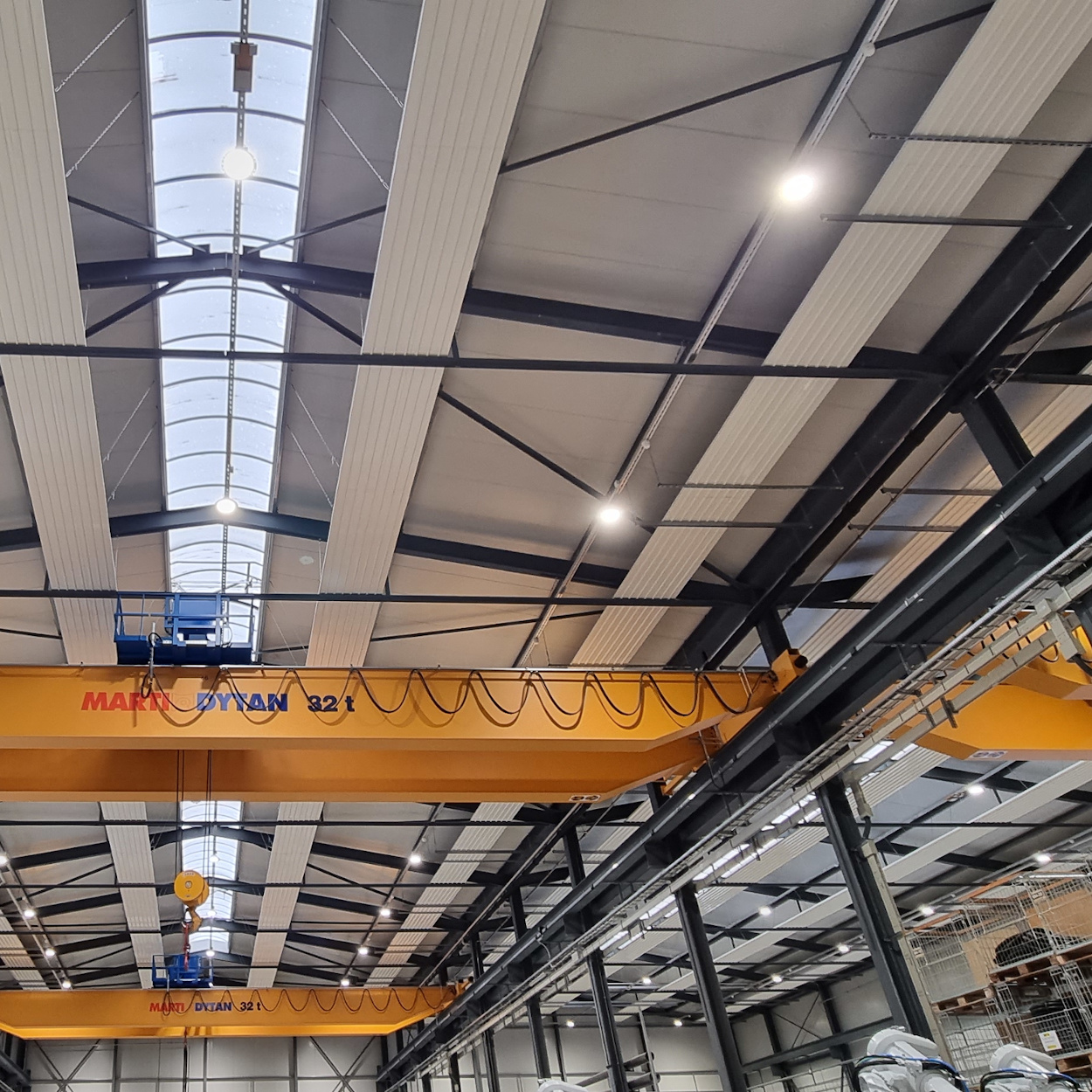

We equipped the two halls with 33 LED high bay lumi­naires each at a lumi­naire level of 11 metres. The lumi­naires were installed along the existing mounting rail without any struc­tural measures. Main­te­nance was reduced to a minimum, as was energy consumption. This was reduced by up to 45% because the spot­lights have a signif­i­cantly lower consumption. Of course, this is also because the motion detectors switch off the lighting in hall zones without activity and switch it on again imme­di­ately when required. In addition, the constant light can be regu­lated with the nevalux lighting control solution.
That the nevalux lighting solution is a success was shown by the reac­tions of the employees already on day 1 of implementation.

We take our time, listen and ask ques­tions. Until we have the perfect solution for you.

After a thorough analysis, ANDRITZ Soutec AG received a compre­hensive document with all the details of the proposed lighting solution. We don’t just hand this dossier over to the customer. We discuss point by point, answer open ques­tions and address sugges­tions and objec­tions. This process builds a basis of trust. Our clients should know: When we take respon­si­bility for imple­men­tation, the project succeeds from A‑Z.

»Already in the eval­u­ation phase, nevalux AG convinced us. The graphics for saving elec­tricity, the use of existing instal­la­tions, the appro­priate products and the profes­sional disposal of the old lumi­naires — they thought of every detail.« Rolf Furter, Head of purchasing ANDRITZ Soutec AG
Hello
A rede­vel­opment of factory halls. Shows the work in a new light.

Customised solution

We don’t just pull out standard solu­tions from a drawer. Every hall is different. Just like the customer and their requirements.

Less power consumption

With constant light control and motion detectors, only as much arti­ficial light is used as necessary. This saves energy — every day.

Compre­hensive project management

We are close and stay close. You have a nevalux contact person, and the one who knows the project best.

Satisfied employees

Good lighting condi­tions are crucial for those who are in the halls or work­rooms all day.

Only the hall is big. In contrast, your effort is small.

Optimal acqui­sition

The motion detector used is suitable for mounting heights of up to 14 metres and monitors an area of up to 1000 sqm.

Flexible lighting control

DALI-based sensors and lumi­naires can be inte­grated into any sensor-controlled lighting solution.

Envi­ron­men­tally friendly

Cable trays are available in almost all old hall lighting systems. Thanks to these cable trays, wiring with DALI is very simple.

Variety

We have the right products for the most diverse needs of building management systems: KNX, DALI, Blue­tooth, COM1, COM2, etc.

Let’s make the project shine together.

Solu­tions ready

We ensure a positive instal­lation expe­rience. You have ques­tions about the instal­lation. Give us a call, we’ll take care of everything.

At your side

Are you working with us on an object? We do this in part­nership at all times and look forward to exchanging ideas with you.

Profes­sional disposal

We work together with specialised companies that collect old lumi­naires and housings and dispose of them in an appro­pri­ately competent manner.

nevalux

Because our products are also giddy

Products in detail

Highly reliable, this motion detector:

IS 3360 MX Highbay

It’s all up and down here — the Highbay products from STEINEL

High ceilings indoors are no problem, whether in a factory hall, a high-bay ware­house or a sports hall. The Highbay motion detectors have a long range, an extra large detection area and remain extremely attentive even at an instal­lation height of up to 14 metres.

Now it’s time to work together.

I’m Matthias Käser. The best thing is to talk in person.

I look forward to your call.

044 521 81 26 079 284 58 12 Contact us
