| Surface | Presence detector |
| Mains power supply | 230 V / 50 – 60 Hz |
| Settings via | Remote control DIP switches Potentiometers Smart Remote |
| With remote control | No |

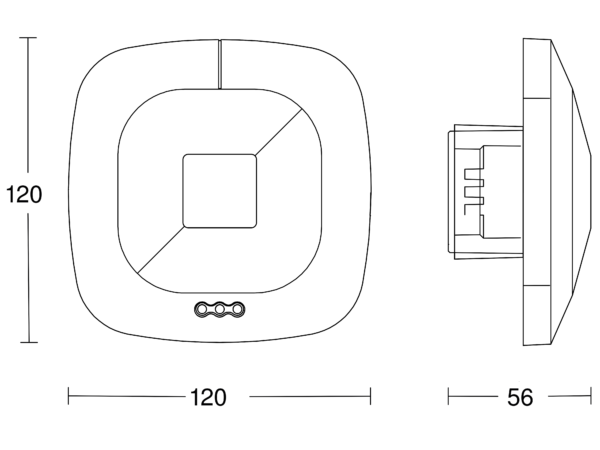

| Dimensions (L x W x H) | 56 x 120 x 120 mm |
| Sensor Technology | High frequency |
| Transmitter power | < 1 mW |
| HF-system | 5,8 GHz |
| Interconnection | Yes |
| Type of interconnection | Master/master Master/slave |
| Interconnection via | Cable |
| Application, place | Indoors |
| Application, room | function room / ancillary room kitchenette stairwell WC / washroom Indoors |
| Installation site | ceiling |
| Type of installation | Concealed wiring |
| Mounting height | 2,50 – 3,50 m |
| Optimum mounting height | 2,8 m |
| Mounting height max. | 3,50 m |
| Output | 2000 W |
| Capture | also through glass, wood and stud walls |
| Detection angle | 360 ° |
| Angle of aperture | 140 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | Yes |
| Mechanical scalability | No |
| Reach, detail | 1 or 2 detection directions can be masked out by stickers for adjustment to the room situation. |

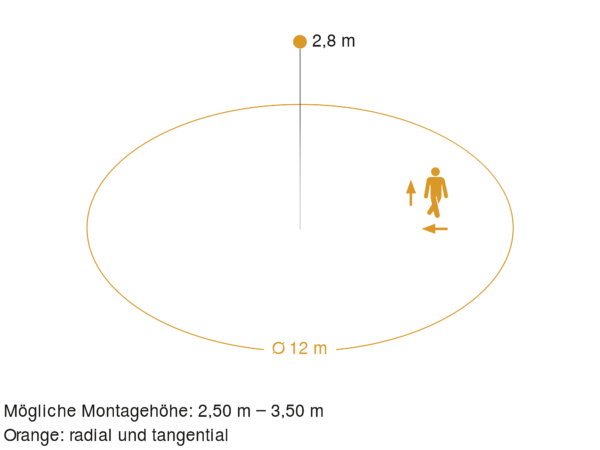

| Radial reach | Ø 12 m (113 m²) |
| Tangential reach radius | Ø 12 m (113 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 10 – 1000 lx |
| Twilight setting TEACH | Yes |
| Time setting | 30 s – 30 Min. |
| Main light adjustable | No |
| Basic light level function | No |
| Output | 2000 W |
| Functions | Normal / test mode Semi-/fully automatic Pushbutton / switch mode Manual ON / ON-OFF |
| Soft light start | No |
| Continuous light | selectable |
| Constant-lighting control | No |
| Fluorescent lamps, electronic ballast | 1500 W |
| Fluorescent lamps, uncorrected | 1000 VA |
| Fluorescent lamps, series-corrected | 1000 VA |
| Fluorescent lamps, parallel-corrected | 1000 VA |
| Switching output 1, low-voltage halogen lamps | 2000 VA |
| LED lamps < 2 W | 100 W |
| LED lamps > 2 W < 8 W | 300 W |
| LED lamps > 8 W | 600 W |
| Capacitive load in uF | 176 µF |
| IP rating | IP20 |
| Ambient temperature | from -25 up to 55 °C |
| Material | Plastic |
| Colour | white |
| Colour, RAL | 9010 |
| Manufacturer's Warranty | 5 years |
| Includes corner wall mount | No |
