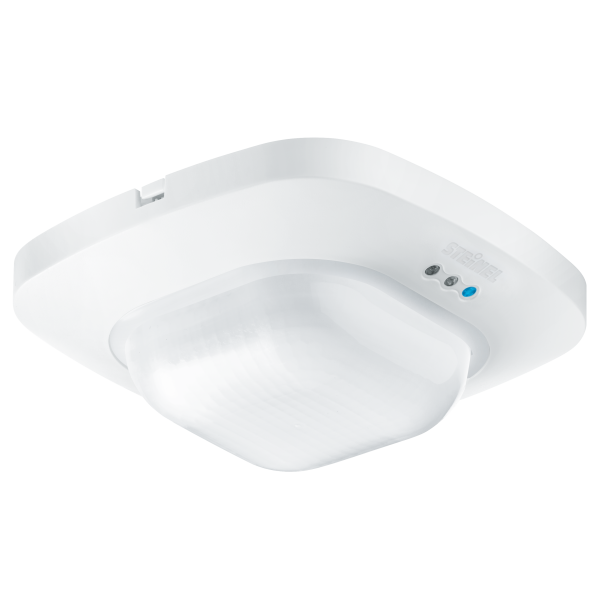

| Type | Presence detector |
| Dimensions (L x W x H) | 70 x 120 x 120 mm |
| Power supply, detail | KNX bus |

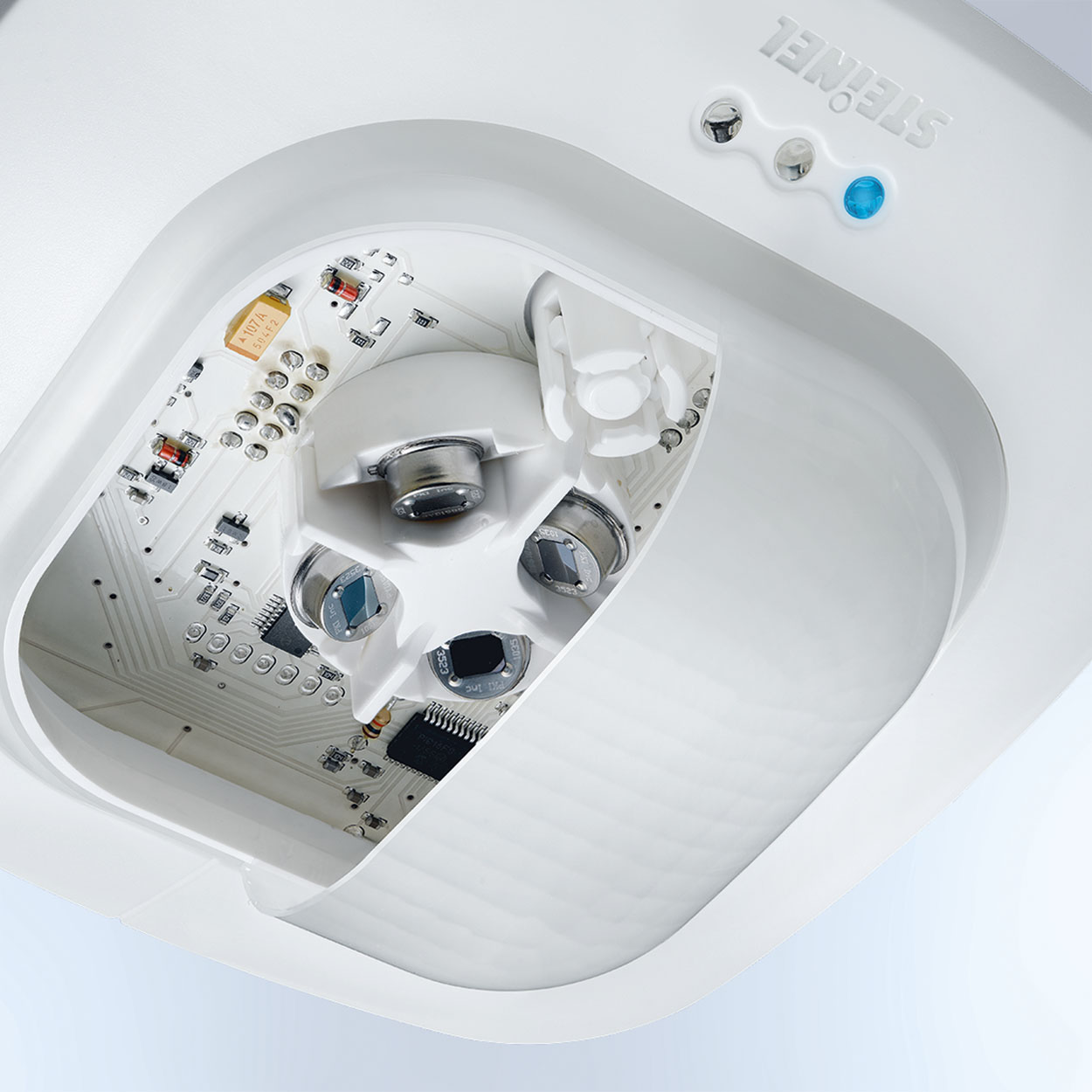

| Sensor Technology | passive infrared |
| Application, place | Indoors |
| Application, place, room | Open-plan office, high-bay warehouse, conference room, sports hall, classroom |
| Installation site | ceiling |

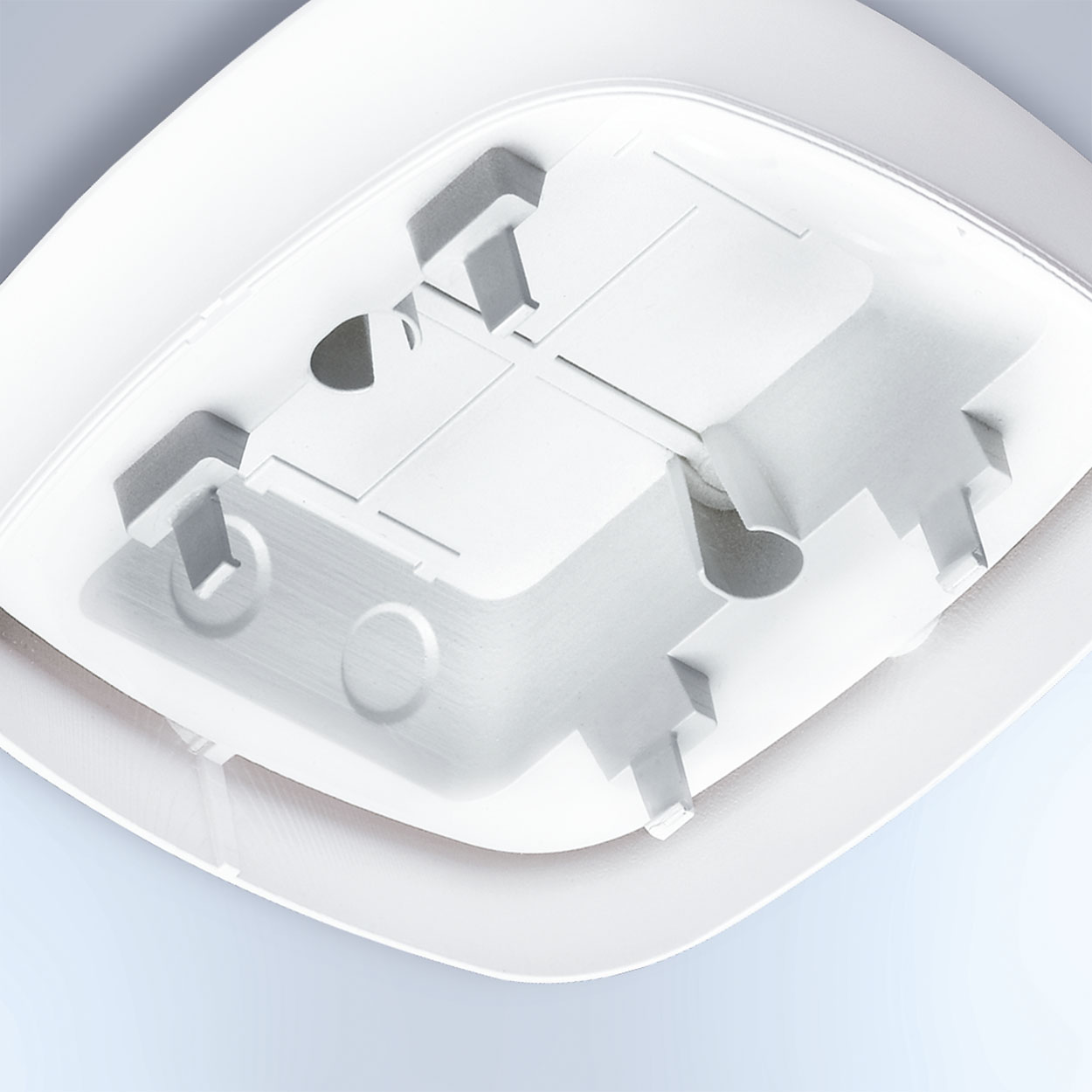

| Type of installation | Concealed wiring |
| Switching zones | 4800 switching zones |
| Electronic scalability | No |
| Mechanical scalability | Yes |
| Mounting height | 2,50 – 10,00 m |
| Optimum mounting height | 2,8 m |
| Detection angle | 360 ° |
| Angle of aperture | 360 ° |
| Sneak-by guard | No |
| Capability of masking out individual segments | No |
| Reach, radial | 8 x 8 m (64 m²) |
| Reach, tangential | 20 x 20 m (400 m²) |
| Reach, presence | 8 x 8 m (64 m²) |
| Twilight setting TEACH | Yes |
| Twilight setting | 10 – 1000 lx |
| Time setting | 0 – 255 min |
| Basic light level function in per cent | 10 – 50 % |
| Basic light level function time | Permanently ON, 1-255 min, all night |
| KNX functions | Light output 4x, Presence output, Light level, Constant-lighting control, Basic light level function, HVAC output |
| With bus coupling | Yes |

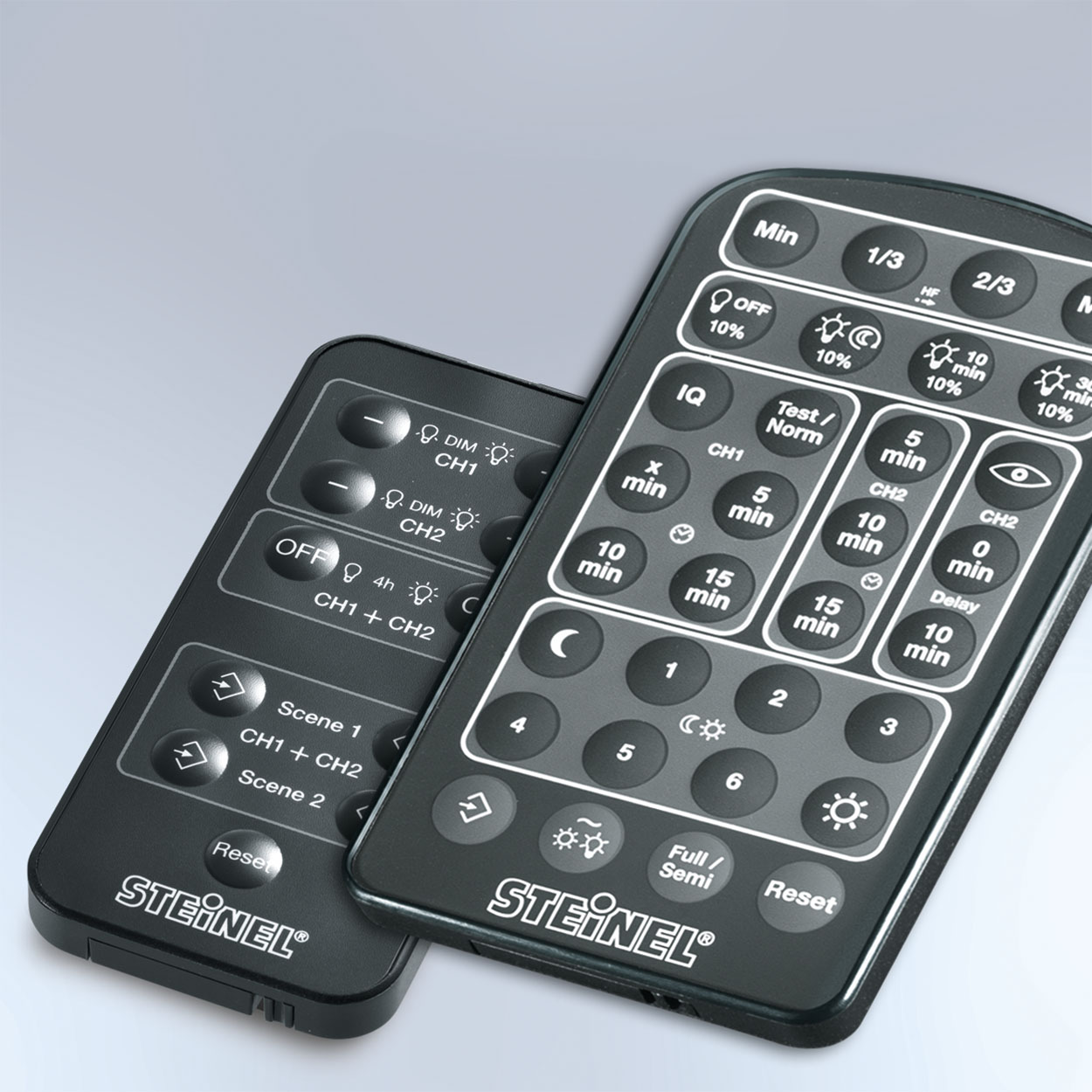

| Settings via | ETS software, Remote control, Bus |
| With remote control | No |
| Interconnection | Yes |
| IP rating | IP54 |
| Material | Plastic |
| Ambient temperature | -25 – 55 °C |
| Colour | white |
| Colour, RAL | 9010 |
| Manufacturer's Warranty | 5 years |
| Version | KNX |
| Model | KNX |
