| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Settings via | Remote control Potentiometers Smart Remote |
| Dimensions (L x W x H) | 126 x 265 x 188 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Type of interconnection | Sensor/slave |
| Interconnection via | Cable |
| Interconnection, number | maximum of 10 floodlights |
| Application, place | Outdoors |
| Application, room | outdoors courtyard & driveway |
| Installation site | wall |
| Type of installation | Surface wiring |
| Mounting height | 1,8 – 6 m |
| Optimum mounting height | 2 m |
| Mounting height max. | 6,00 m |
| Output | 45 W |
| Measured luminous flux (360°) | 4189 lm |
| Colour temperature | 3900 K |
| Colour variation LED | SDCM3 |
| Colour Rendering Index | 80-89 |
| With lamp | Yes, STEINEL LED system |
| Lamp | LED cannot be replaced |
| LED life expectancy (max. °C) | 50000 h |
| Drop in luminous flux in accordance with LM80 | L70B10 |
| Base | without |
| LED cooling system | Passive Thermo Control |
| With motion detector | Yes |
| Detection angle | 240 ° |
| Angle of aperture | 180 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | No |

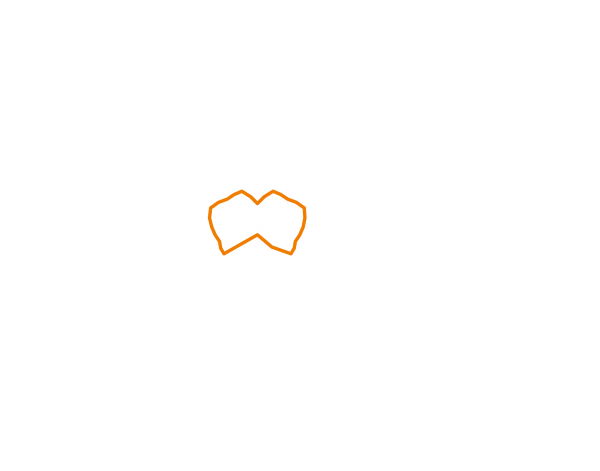

| Radial reach | r = 5 m (52 m²) |
| Tangential reach radius | r = 12 m (302 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 1000 lx |
| Twilight setting TEACH | Yes |
| Time setting | 5 s – 15 Min. |
| Main light adjustable | No |
| Basic light level function | Yes |
| Basic light level function time | 10 min all night |
| Basic light level function in per cent | 3 % |
| Basic light level function percentage, from | 3 % |
| Output | 45 W |
| Soft light start | No |
| Continuous light | selectable, 4h |
| Impact resistance | IK03 |
| IP rating | IP54 |
| Protection class | I |
| Ambient temperature | -20 – 40 °C |
| Housing material | Aluminium |
| Cover material | Plastic, transparent |
| Colour | black |
| Manufacturer's Warranty | 5 years |
| IDs, certificates | VDE |
| Includes corner wall mount | No |
| Cover material delivery | sticker |
| EPREL Category | Light source |
