| Surface | Presence detector |
| Mains power supply | 18 – 55 V |
| Power supply, detail | Passive PoE SELV, standard PoE (IEEE 802.3 af) |
| Settings via | Bluetooth Web-Interface |
| With remote control | No |

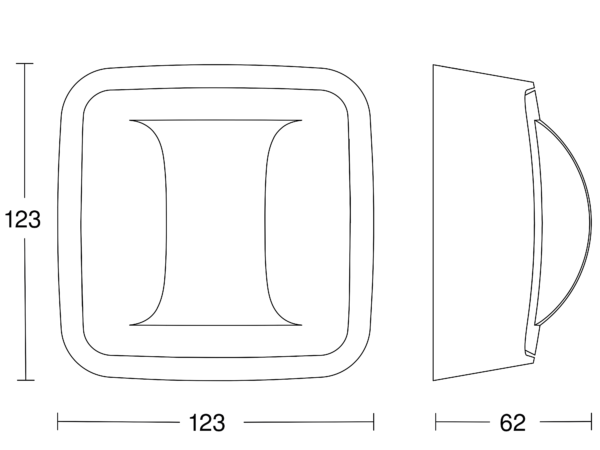

| Dimensions (L x W x H) | 62 x 123 x 123 mm |
| Sensor Technology | High frequency |
| Transmitter power | < 1 mW |
| HF-system | 5,8 GHz |
| Interconnection | Yes |
| Interconnection via | Bluetooth LAN |
| Application, place | Indoors |
| Application, room | Indoors corridor / aisle |
| Installation site | ceiling |
| Type of installation | Surface wiring |
| Mounting height | 2,00 – 4,00 m |
| Optimum mounting height | 2,8 m |
| Mounting height max. | 4,00 m |
| With motion detector | Yes |
| Capture | also through glass, wood and stud walls |
| Detection angle | 360 ° |
| Angle of aperture | 140 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | No |
| Electronic scalability | Yes |
| Mechanical scalability | No |

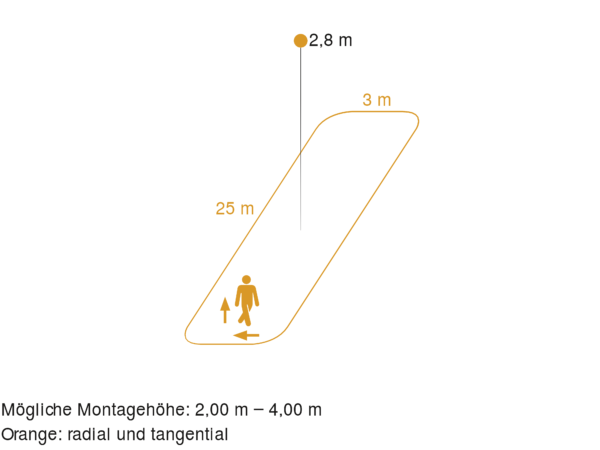

| Radial reach | 25 x 3 m (75 m²) |
| Tangential reach radius | 25 x 3 m (75 m²) |
| Photo-cell controller | Yes |
| Twilight setting TEACH | No |
| Main light adjustable | No |
| Basic light level function | No |
| Soft light start | No |
| Continuous light | selectable |
| Constant-lighting control | No |
| IP rating | IP20 |
| Ambient temperature | from -20 up to 50 °C |
| Material | Plastic |
| Colour | white |
| Colour, RAL | 9003 |
| Manufacturer's Warranty | 5 years |
| Includes corner wall mount | No |
