| Mains power supply | 230 – 240 V / 50 Hz |
| Settings via | Potentiometers |
| With remote control | No |
| Dimensions (Ø x H) | 280 x 110 mm |
| Sensor Technology | High frequency |
| Transmitter power | < 1 mW |
| HF-system | 5,8 GHz |
| Interconnection | Yes |
| Type of interconnection | Master/master |
| Interconnection via | Cable |
| Application, place | Indoors |
| Application, room | corridor / aisle function room / ancillary room stairwell WC / washroom outdoors Indoors |
| Installation site | wall ceiling |
| Type of installation | Surface wiring |
| Mounting height | 2,00 – 4,00 m |
| Optimum mounting height | 2,5 m |
| Mounting height max. | 4,00 m |
| Output | 60 W |
| Power consumption | 1,1 W |
| With lamp | No |
| Lamp | All-purpose lamp |
| Base | E27 |
| With motion detector | Yes |
| Capture | also through glass, wood and stud walls |
| Detection angle | 360 ° |
| Angle of aperture | 160 ° |
| Capability of masking out individual segments | No |
| Electronic scalability | Yes |
| Mechanical scalability | No |

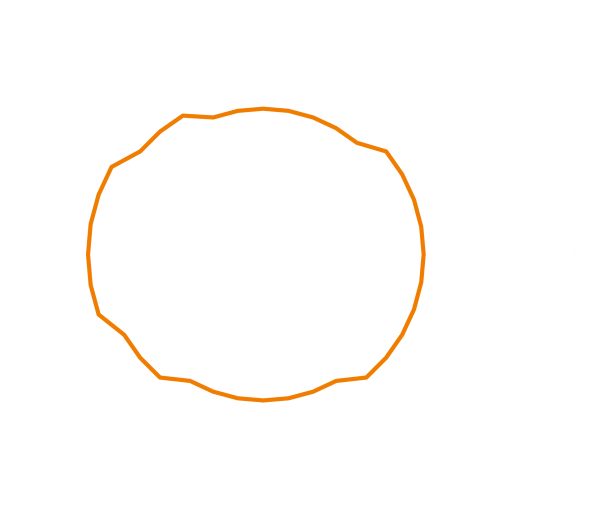

| Radial reach | Ø 8 m (50 m²) |
| Tangential reach radius | Ø 8 m (50 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 2000 lx |
| Twilight setting TEACH | No |
| Time setting | 5 s – 15 Min. |
| Basic light level function | No |
| Output | 60 W |
| Soft light start | No |
| Continuous light | selectable |
| Switching output 1, resistive | 800 W |
| Impact resistance | IK03 |
| IP rating | IP44 |
| Protection class | II |
| Ambient temperature | from -20 up to 40 °C |
| Housing material | Aluminium |
| Cover material | Glass opal |
| Colour | white |
| Manufacturer's Warranty | 5 years |
